Renogy Reserve Mini Smart 12V 200Ah / 314Ah LiFePO4 Battery | Self-Heating, Bluetooth, IP65

At a Glance

• Max Capacity: 314Ah
• Max Energy: 4,019Wh
• Cycles @ 80% DOD: 5,000+
• Renogy App: Bluetooth
• Rated: IP65

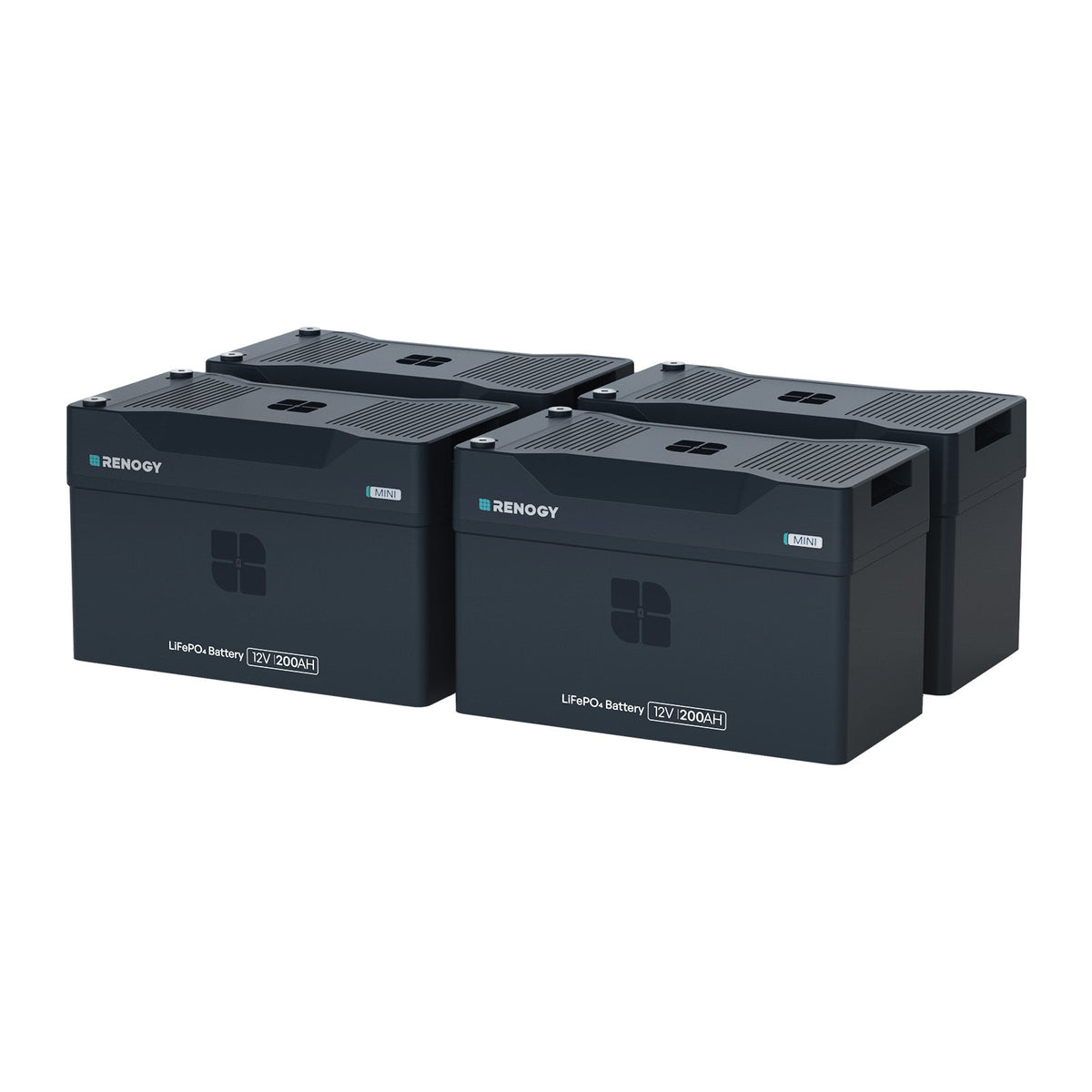

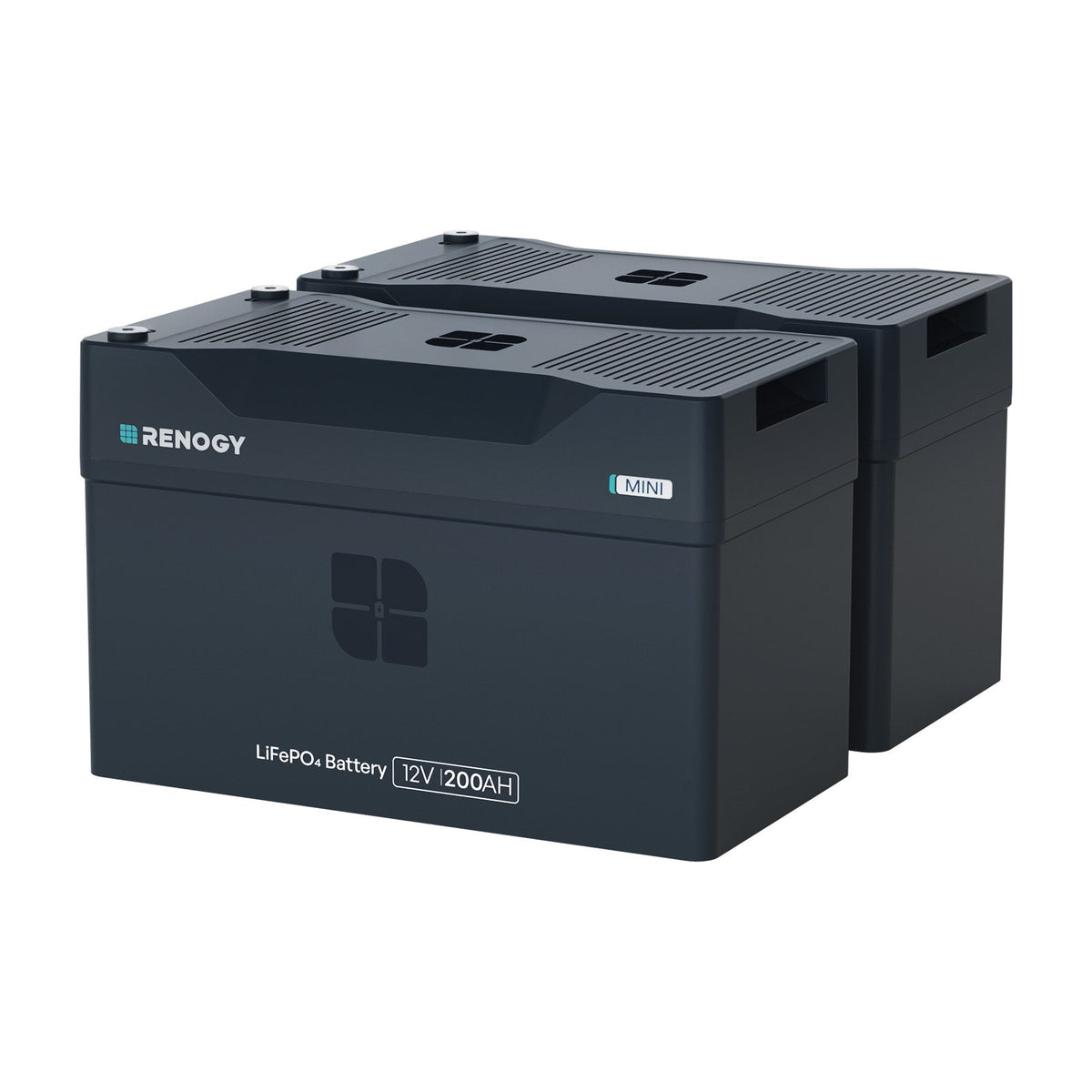

• Expandable: 4S4P

Key Features

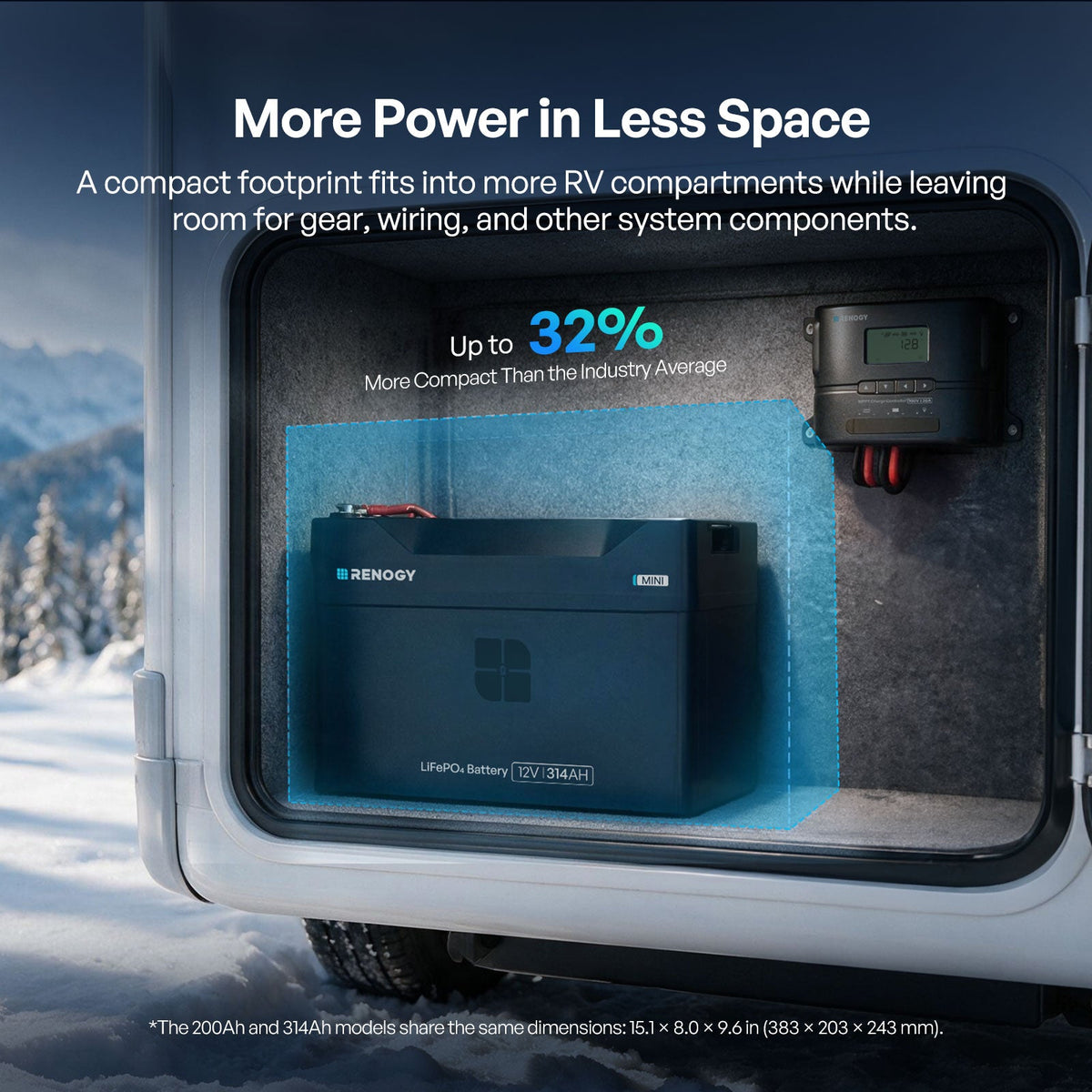

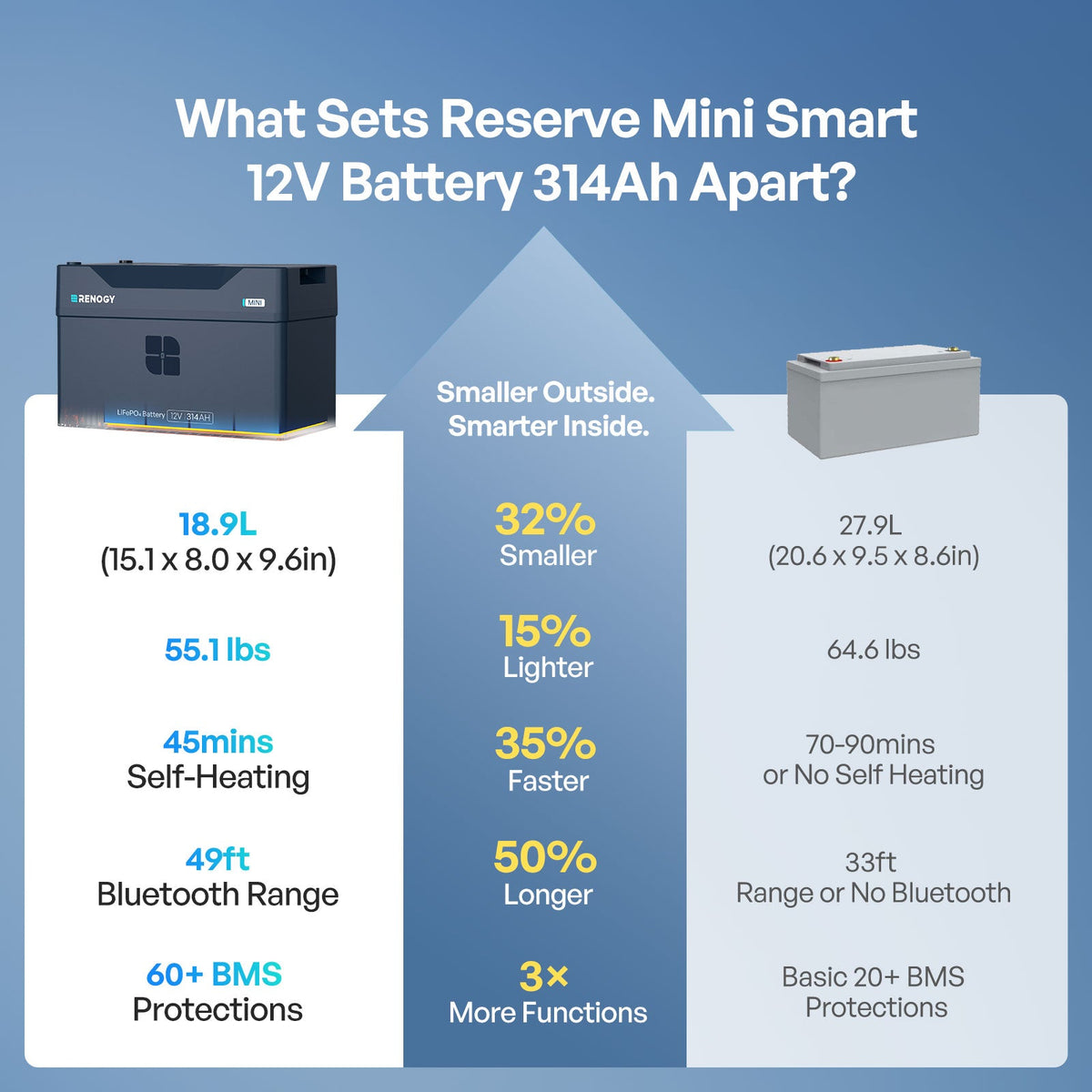

• Two Capacities, One Footprint: Both the 200Ah and 314Ah models measure 15.1 x 8.0 x 9.6 in, so you can maximize energy without redesigning your battery bay.

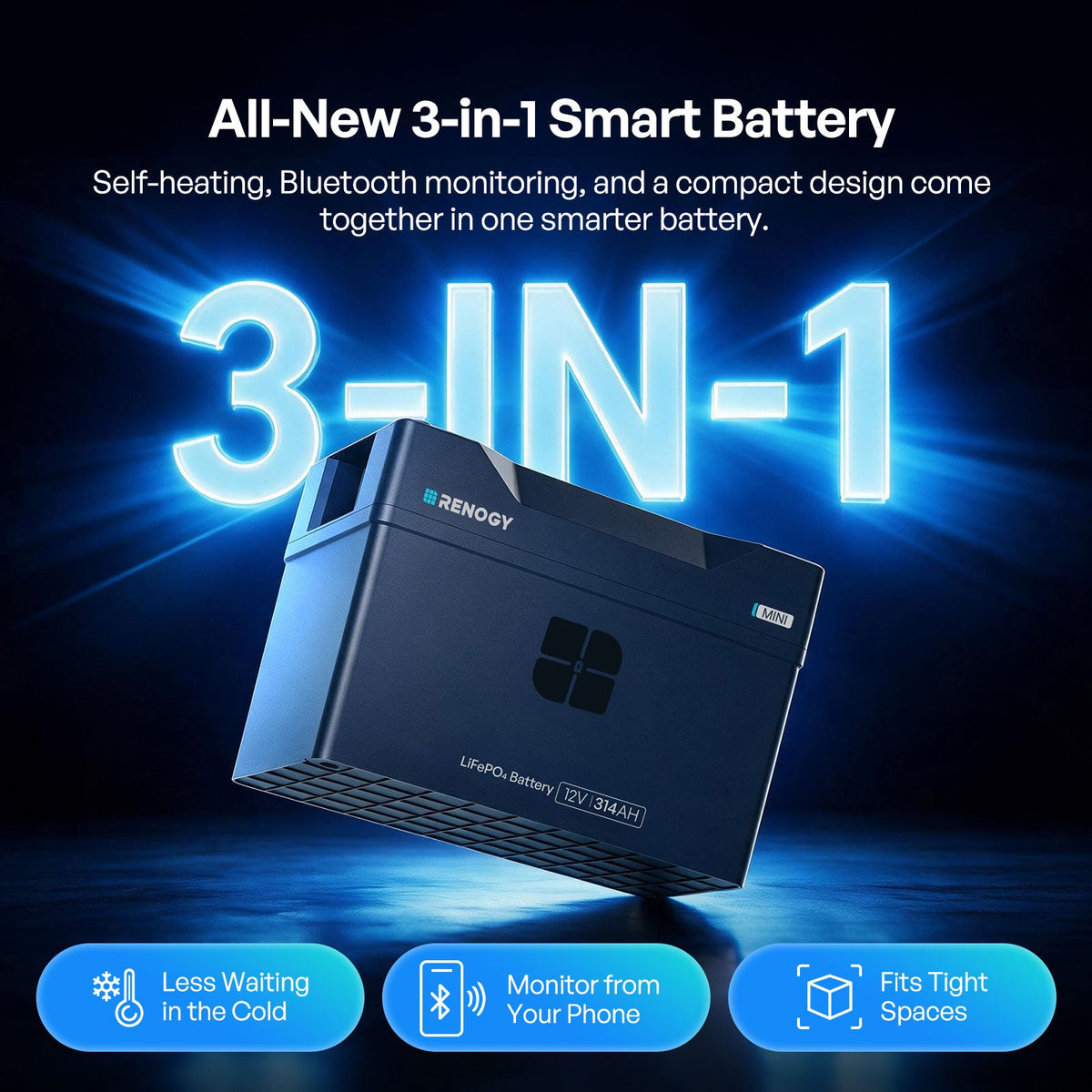

• Built-In Self-Heating: 80W (200Ah) or 140W (314Ah) heating pads warm the battery from 14°F to 32°F in as little as 45-50 minutes for cold-weather charging.

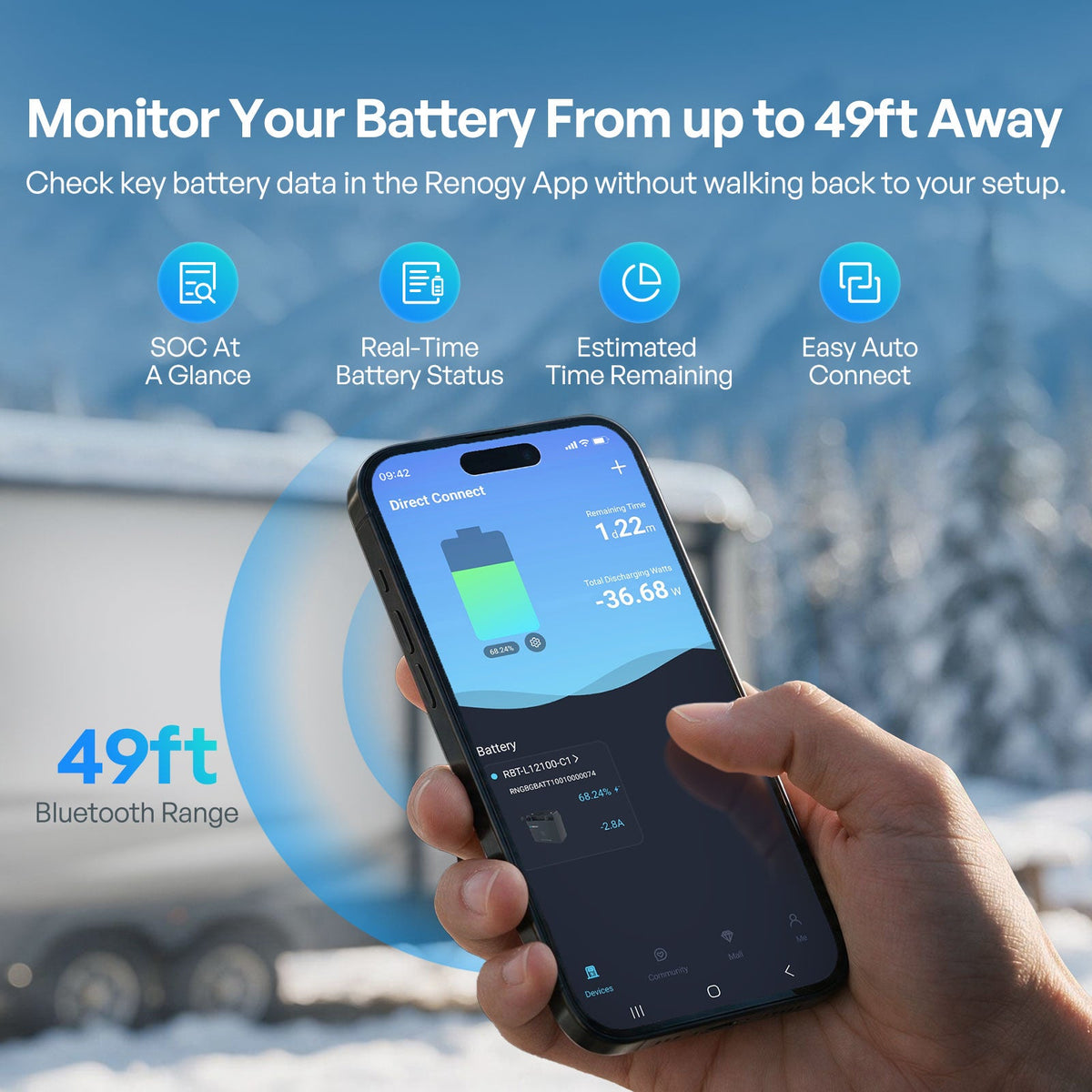

• Bluetooth App Monitoring: See SOC, voltage, current, power, remaining time and alerts in the Renogy App from up to 49 ft away.
• High Power Delivery: 2,560W max continuous output with a 1,000A peak for 1 second; the 314Ah supports up to 220A continuous discharge.
• 60+ BMS Protections: Multi-level protection including automatic charge and discharge cut-off and low-temperature protection below 32°F.

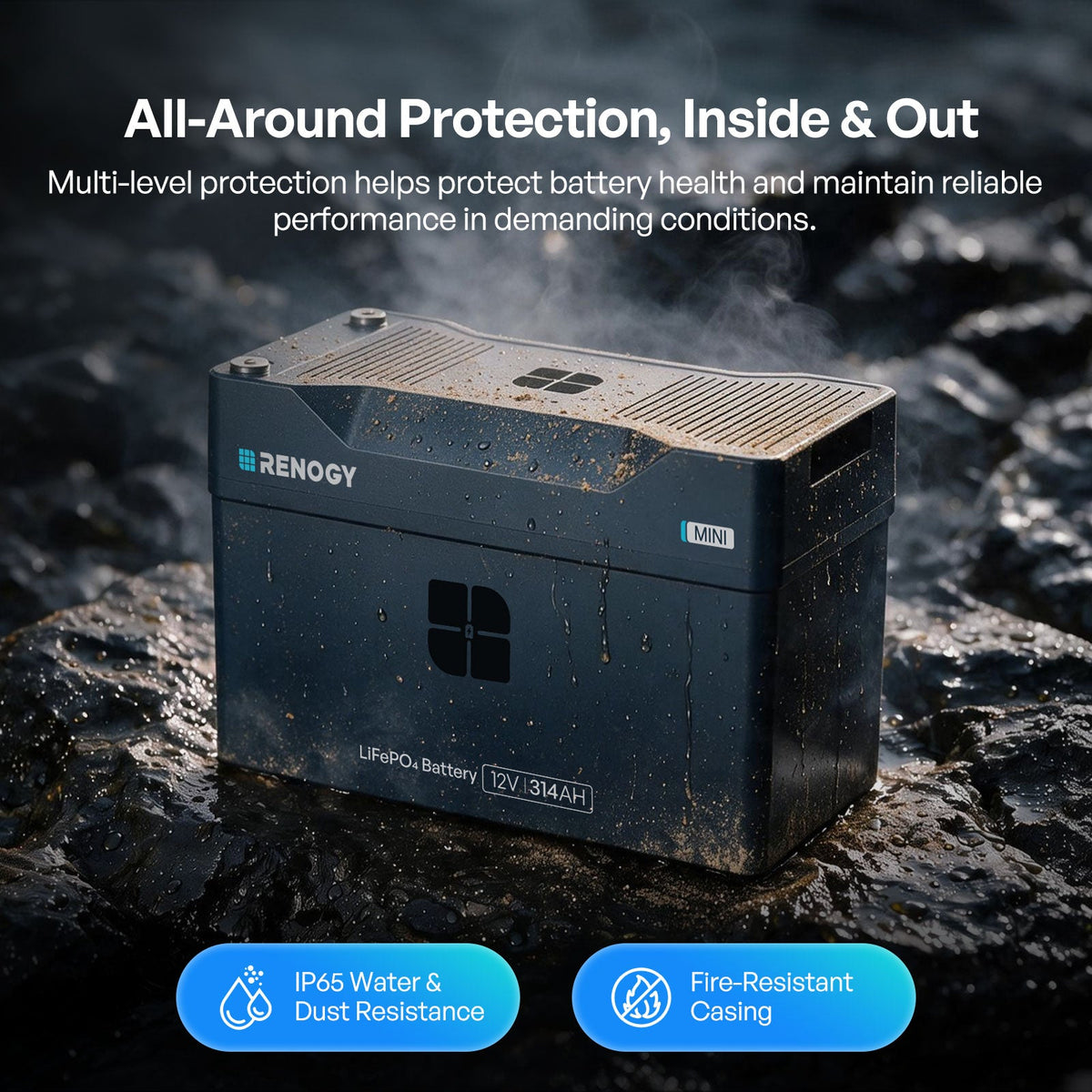

• Rugged and Flame-Retardant: IP65 enclosure and V0 flame-retardant ABS+PC housing, with 99.2%+ voltage retention after vibration and shock testing (314Ah).
