Renogy 400W 12V Starter Solar Panel Kit | Rigid or Flexible Panels, MPPT or PWM
Flexible monthly payment options available for qualified customers at checkout.
At a Glance
- Solar: 400W
- Compatible: 12V/24V
- MPPT Option: 40A
- PWM Option: 30A
- MPPT Efficiency: 99%
- Module Included: Bluetooth
Key Features
- 400W of Solar: Enough daily harvest for lights, fans, fridges and devices; Renogy bases output on 5-6 peak sun hours.
- Rover Li 40A MPPT: 99% MPPT efficiency, 12V/24V auto-recognition, 100V max PV input and app control via Bluetooth.
- Adventurer 30A PWM: An affordable controller with a 5V/2.4A USB port and up to 400W PV at 12V for the 4x 100W kit.

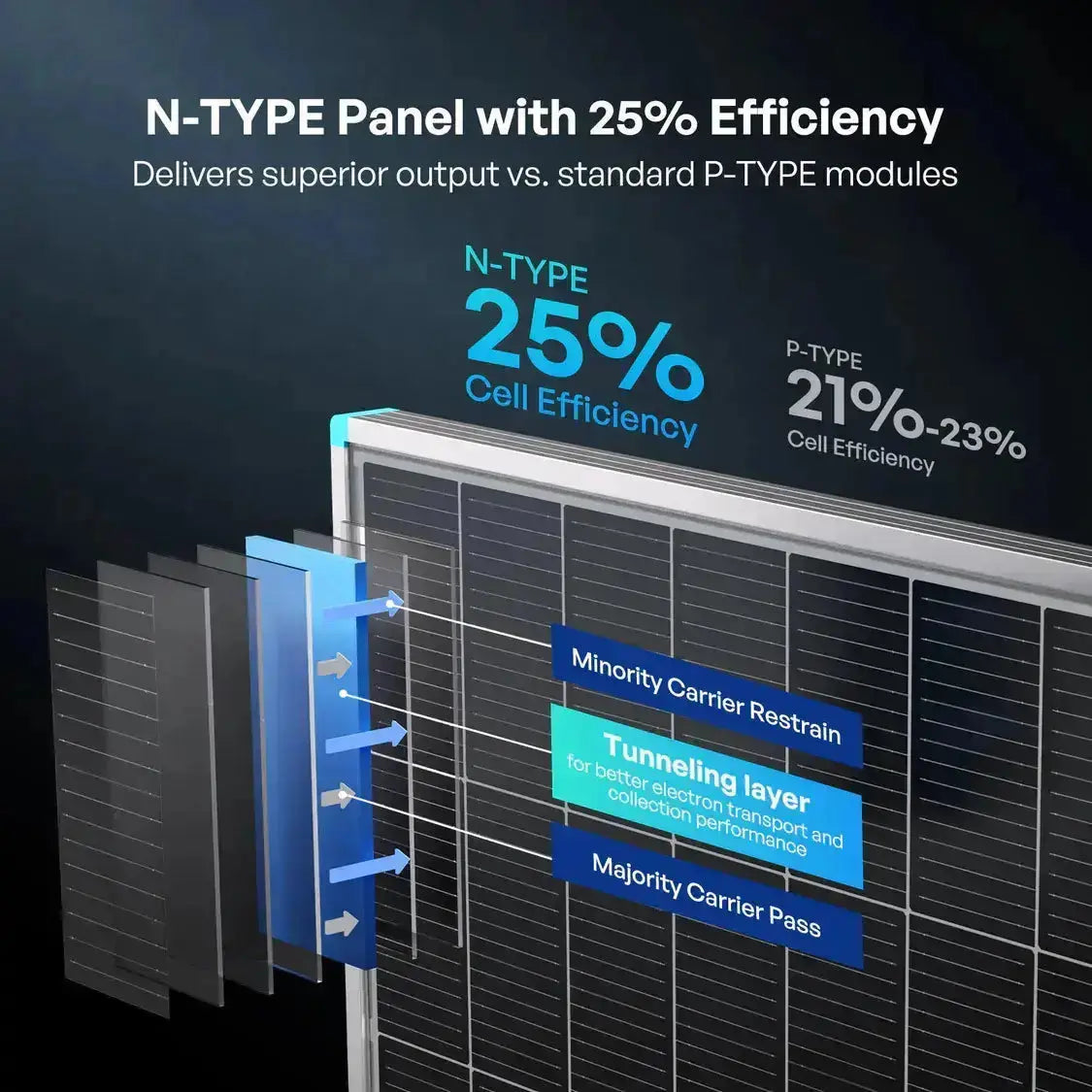

- N-Type Rigid Panels: 200W 16BB N-Type panels deliver 20.7% module efficiency and fit Class B van roofs.
- Flexible Panel Option: 200W flexible panels are only 0.1 in thick and weigh 10.8 lb each for curved or low-profile roofs.
- Everything to Connect: Fuses, adaptor and tray cables, branch connectors, Z mounting brackets and a Bluetooth module are included.

Choose options
Frequently Asked Questions
Is a battery included?
Will it run my RV air conditioner?
MPPT or PWM: which should I choose?
Renogy · Solar Kits · 400W Starter
Renogy 400W 12V Starter Solar Panel Kit
The easiest way to put 400W of solar on your RV or van. Panels, controller, cabling and mounts in one kit.
Renogy's 400W Starter Kit delivers everything needed to start charging a 12V or 24V battery bank from the sun. Choose two 200W 16BB N-Type rigid panels or two 200W flexible panels paired with a Rover Li 40A MPPT controller, or four 100W panels with an Adventurer 30A PWM controller for the most affordable entry. Each kit includes fuses, adaptor and tray cables, branch connectors, Z mounting brackets and a Bluetooth module, plus a wiring diagram. Add a deep-cycle battery and you are ready to go off-grid.
Why it stands out
Simple, Proven Solar for RVs and Vans
Three configurations to match your roof, budget and charging needs.
Best for: first-time RV, campervan and trailer solar installs, and small off-grid sheds or cabins on a 12V or 24V battery bank.
Key Features
400W of Solar
Enough daily harvest for lights, fans, fridges and devices; Renogy bases output on 5-6 peak sun hours.
Rover Li 40A MPPT
99% MPPT efficiency, 12V/24V auto-recognition, 100V max PV input and app control via Bluetooth.
Adventurer 30A PWM
An affordable controller with a 5V/2.4A USB port and up to 400W PV at 12V for the 4x 100W kit.
N-Type Rigid Panels
200W 16BB N-Type panels deliver 20.7% module efficiency and fit Class B van roofs.
Flexible Panel Option
200W flexible panels are only 0.1 in thick and weigh 10.8 lb each for curved or low-profile roofs.
Everything to Connect
Fuses, adaptor and tray cables, branch connectors, Z mounting brackets and a Bluetooth module are included.
Choose Your Configuration
Technical Specifications
| 200W N-Type Panel Voc / Isc | 37.44V / 6.85A |
|---|---|
| 200W N-Type Panel Vmp / Imp | 31.03V / 6.45A |
| 200W N-Type Efficiency | 20.7% |
| 200W N-Type Dimensions | 49.7 x 30.1 x 1.2 in |
| 200W Flexible Voc / Isc | 23.9V / 10.74A |
| 200W Flexible Efficiency | 16.7% |
| 200W Flexible Dimensions | 63.2 x 29.4 x 0.1 in, 10.8 lb |
| 100W Panel Voc / Isc | 22.79V / 5.31A |
| 100W Panel Dimensions | 34.1 x 22.8 x 1.2 in |
| Rover Li 40A Max PV Input | 520W (12V) / 1040W (24V), 100VDC max |
| Rover Li 40A System Voltage | 12V/24V auto-recognition |
| Adventurer 30A Max PV Input | 400W (12V) / 800W (24V), 50VDC max |
| Adventurer 30A USB | 5V/2.4A |
| Panel Operating Temperature | -40°F to 185°F (rigid) |
*Performance figures are manufacturer ratings under standard test conditions. Real-world output varies with sunlight, temperature, installation and load. Specifications may change as Renogy updates the model.
What's in the Box

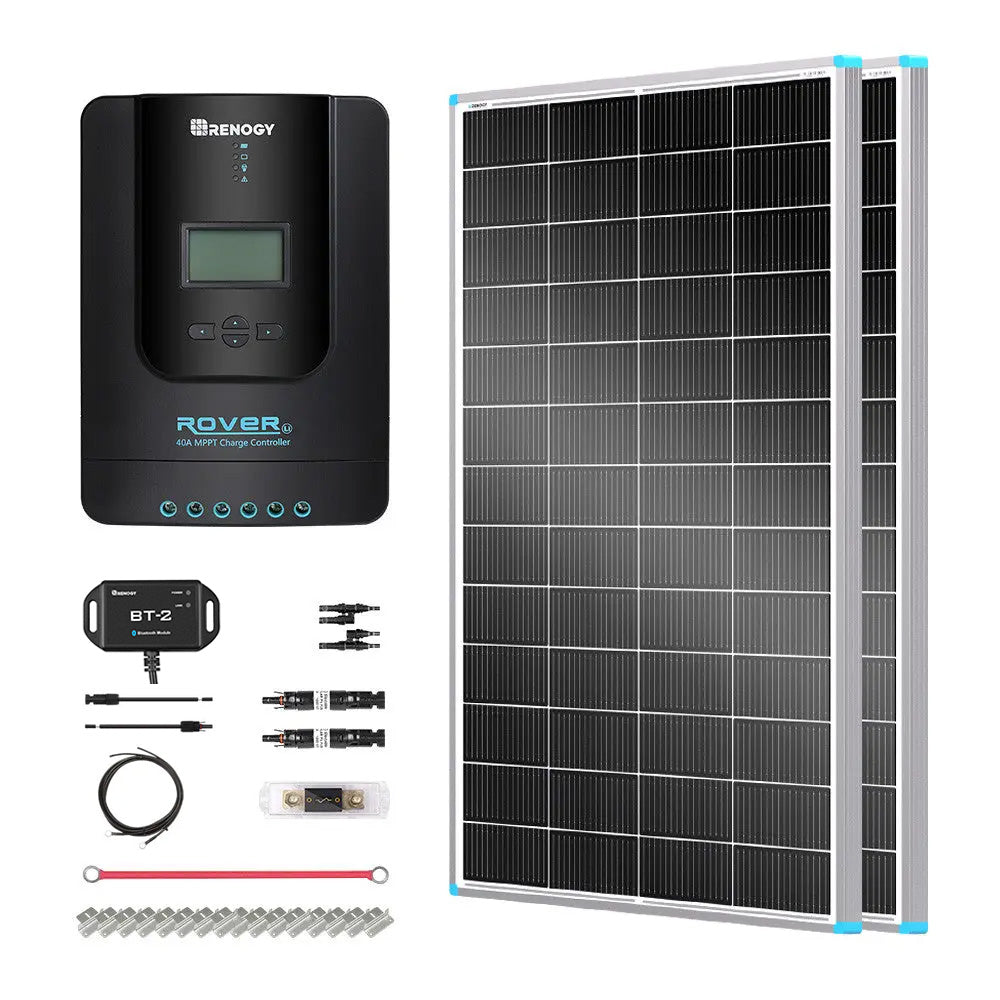

- 2x 200W N-Type Rigid kit: 200W N-Type panels (x2), Rover Li 40A MPPT, 1FT 8AWG fuse cable, 20A in-line fuse holders with fuse (x2), 20FT 10AWG solar adaptor cable, 60A ANL fuse set, 8FT 8AWG tray cable, Y-branch connector pair, Z mounting brackets (x4), BT-2 Bluetooth module

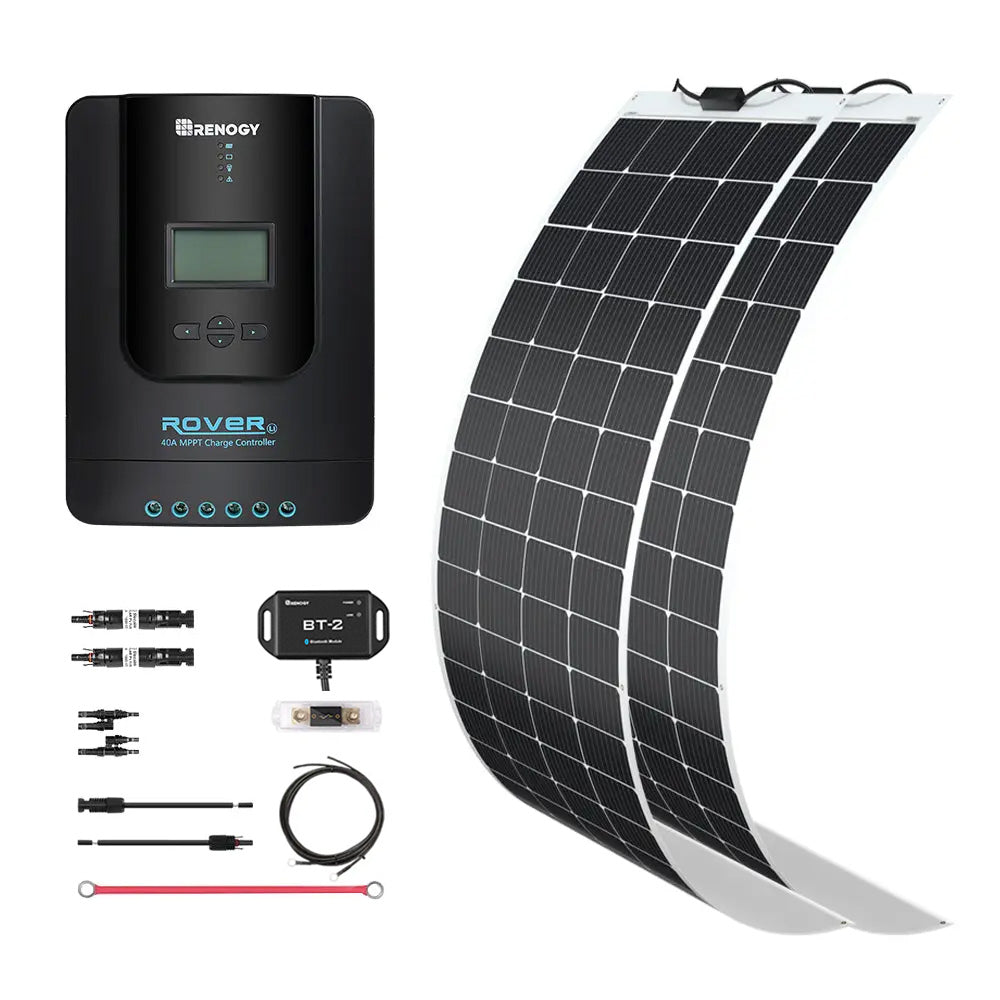

- 2x 200W Flexible kit: same components as the rigid kit, with 200W flexible panels (x2)

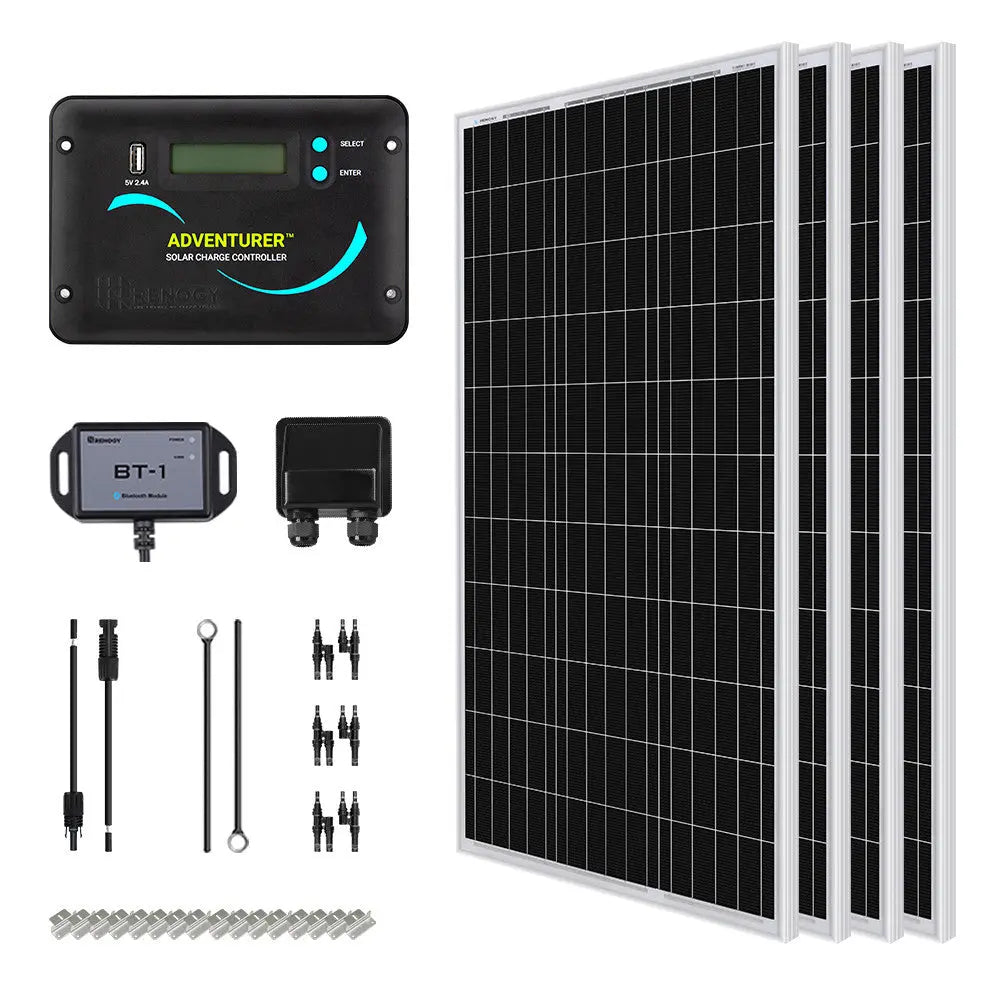

- 4x 100W kit: 100W panels (x4), Adventurer 30A PWM controller, cable entry housing, 30FT 10AWG solar adaptor kit, 16FT 10AWG tray cables, Y-branch connectors (x3), Z mounting brackets (x4), BT-1 Bluetooth module
Ownership & Support
- Backed by Renogy's manufacturer warranty (see specifications for model-specific terms)
- Need help sizing a system? We can help you match panels, batteries, controllers and inverters
- Professional installation by a qualified electrician is recommended for AC and high-voltage systems
- Questions before you buy? Contact Your Tech Haven at support@yourtechhaven.com or (972) 737-7434
Renogy 400W 12V Starter Solar Panel Kit FAQs
Is a battery included?
No. A deep-cycle battery is required and is not included with this kit.
Will it run my RV air conditioner?
Renogy does not guarantee the kit can power an AC unit; sizing depends on your loads and daily sun hours.
MPPT or PWM: which should I choose?
The Rover Li 40A MPPT kits offer 99% tracking efficiency and higher PV input limits; the 30A PWM kit is the most affordable entry point.
Does it work with 24V systems?
Yes. Both the Rover Li 40A and Adventurer 30A controllers support 12V and 24V systems.
How do I monitor my system?
Each kit includes a Bluetooth module (BT-2 with the MPPT kits, BT-1 with the PWM kit) for app monitoring.
Renogy · Solar Kits · 400W Starter
Renogy 400W 12V Starter Solar Panel Kit
The easiest way to put 400W of solar on your RV or van. Panels, controller, cabling and mounts in one kit.
Renogy's 400W Starter Kit delivers everything needed to start charging a 12V or 24V battery bank from the sun. Choose two 200W 16BB N-Type rigid panels or two 200W flexible panels paired with a Rover Li 40A MPPT controller, or four 100W panels with an Adventurer 30A PWM controller for the most affordable entry. Each kit includes fuses, adaptor and tray cables, branch connectors, Z mounting brackets and a Bluetooth module, plus a wiring diagram. Add a deep-cycle battery and you are ready to go off-grid.
Why it stands out
Simple, Proven Solar for RVs and Vans
Three configurations to match your roof, budget and charging needs.
Best for: first-time RV, campervan and trailer solar installs, and small off-grid sheds or cabins on a 12V or 24V battery bank.
Key Features
400W of Solar
Enough daily harvest for lights, fans, fridges and devices; Renogy bases output on 5-6 peak sun hours.
Rover Li 40A MPPT
99% MPPT efficiency, 12V/24V auto-recognition, 100V max PV input and app control via Bluetooth.
Adventurer 30A PWM
An affordable controller with a 5V/2.4A USB port and up to 400W PV at 12V for the 4x 100W kit.
N-Type Rigid Panels
200W 16BB N-Type panels deliver 20.7% module efficiency and fit Class B van roofs.
Flexible Panel Option
200W flexible panels are only 0.1 in thick and weigh 10.8 lb each for curved or low-profile roofs.
Everything to Connect
Fuses, adaptor and tray cables, branch connectors, Z mounting brackets and a Bluetooth module are included.
Choose Your Configuration
Technical Specifications
| 200W N-Type Panel Voc / Isc | 37.44V / 6.85A |
|---|---|
| 200W N-Type Panel Vmp / Imp | 31.03V / 6.45A |
| 200W N-Type Efficiency | 20.7% |
| 200W N-Type Dimensions | 49.7 x 30.1 x 1.2 in |
| 200W Flexible Voc / Isc | 23.9V / 10.74A |
| 200W Flexible Efficiency | 16.7% |
| 200W Flexible Dimensions | 63.2 x 29.4 x 0.1 in, 10.8 lb |
| 100W Panel Voc / Isc | 22.79V / 5.31A |
| 100W Panel Dimensions | 34.1 x 22.8 x 1.2 in |
| Rover Li 40A Max PV Input | 520W (12V) / 1040W (24V), 100VDC max |
| Rover Li 40A System Voltage | 12V/24V auto-recognition |
| Adventurer 30A Max PV Input | 400W (12V) / 800W (24V), 50VDC max |
| Adventurer 30A USB | 5V/2.4A |
| Panel Operating Temperature | -40°F to 185°F (rigid) |
*Performance figures are manufacturer ratings under standard test conditions. Real-world output varies with sunlight, temperature, installation and load. Specifications may change as Renogy updates the model.
What's in the Box
- 2x 200W N-Type Rigid kit: 200W N-Type panels (x2), Rover Li 40A MPPT, 1FT 8AWG fuse cable, 20A in-line fuse holders with fuse (x2), 20FT 10AWG solar adaptor cable, 60A ANL fuse set, 8FT 8AWG tray cable, Y-branch connector pair, Z mounting brackets (x4), BT-2 Bluetooth module
- 2x 200W Flexible kit: same components as the rigid kit, with 200W flexible panels (x2)
- 4x 100W kit: 100W panels (x4), Adventurer 30A PWM controller, cable entry housing, 30FT 10AWG solar adaptor kit, 16FT 10AWG tray cables, Y-branch connectors (x3), Z mounting brackets (x4), BT-1 Bluetooth module
Ownership & Support
- Backed by Renogy's manufacturer warranty (see specifications for model-specific terms)
- Need help sizing a system? We can help you match panels, batteries, controllers and inverters
- Professional installation by a qualified electrician is recommended for AC and high-voltage systems
- Questions before you buy? Contact Your Tech Haven at support@yourtechhaven.com or (972) 737-7434
Renogy 400W 12V Starter Solar Panel Kit FAQs
Is a battery included?
No. A deep-cycle battery is required and is not included with this kit.
Will it run my RV air conditioner?
Renogy does not guarantee the kit can power an AC unit; sizing depends on your loads and daily sun hours.
MPPT or PWM: which should I choose?
The Rover Li 40A MPPT kits offer 99% tracking efficiency and higher PV input limits; the 30A PWM kit is the most affordable entry point.
Does it work with 24V systems?
Yes. Both the Rover Li 40A and Adventurer 30A controllers support 12V and 24V systems.
How do I monitor my system?
Each kit includes a Bluetooth module (BT-2 with the MPPT kits, BT-1 with the PWM kit) for app monitoring.
