Are batteries included?

No. This kit includes panels, the DC-DC charger, Bluetooth module, mounts (rigid options), fuses and cables; batteries are sold separately.

Rigid or flexible panels?

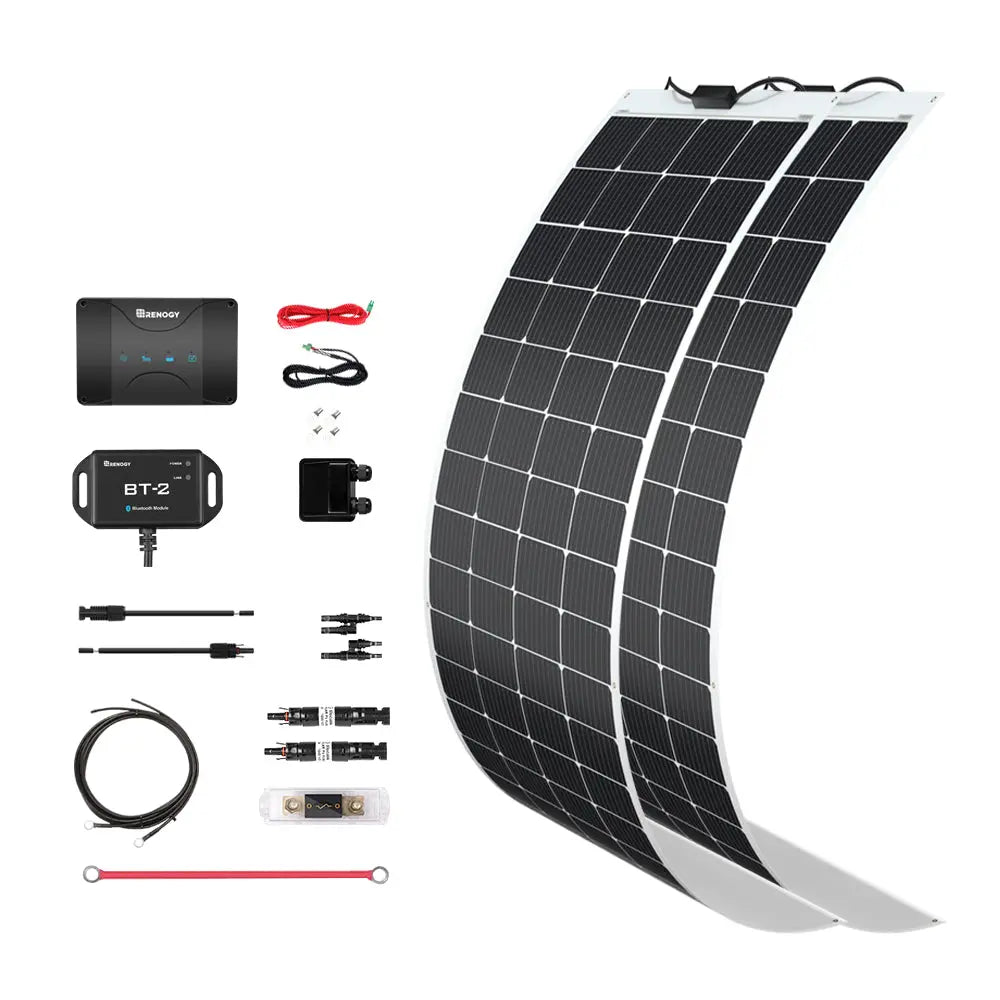

Rigid N-type panels are framed with pre-drilled holes for Z-bracket mounting; flexible panels are about 3 mm thin and 10.8 lb, suited to curved or low-profile roofs. Z-brackets are not listed for the flexible option.

Are batteries included?

No. This kit includes panels, the DC-DC charger, Bluetooth module, mounts (rigid options), fuses and cables; batteries are sold separately.

Rigid or flexible panels?

Rigid N-type panels are framed with pre-drilled holes for Z-bracket mounting; flexible panels are about 3 mm thin and 10.8 lb, suited to curved or low-profile roofs. Z-brackets are not listed for the flexible option.

Renogy 400W 12V Essential Solar Kit with DC-DC Assembly - view 1

Renogy 400W 12V Essential Solar Kit with DC-DC Assembly - view 2

Renogy 400W 12V Essential Solar Kit with DC-DC Assembly - view 3

Renogy 400W 12V Essential Solar Kit with DC-DC Assembly - view 4

Renogy 400W 12V Essential Solar Kit with DC-DC Assembly - view 5

Renogy

Renogy 400W 12V Essential Solar Kit with DC-DC Charger | 50A MPPT, Solar + Alternator

$799.99

Solar Panel:

4 x 100W N-Type Rigid 2 x 200W N-Type Rigid 2 x 200W Flexible

Variant

...

......

...

Buy now, pay over time with Affirm
Flexible monthly payment options available for qualified customers at checkout.

Refund Policy

At a Glance

Solar: 400W
DC-DC + MPPT: 50A
Max Input: 660W
Charge Efficiency: 94%
System: 12V
Bluetooth: BT-2

Key Features

50A DC-DC Charger with MPPT: One on-board charger handles both solar and alternator input at up to 660W each, with 94% charging efficiency.

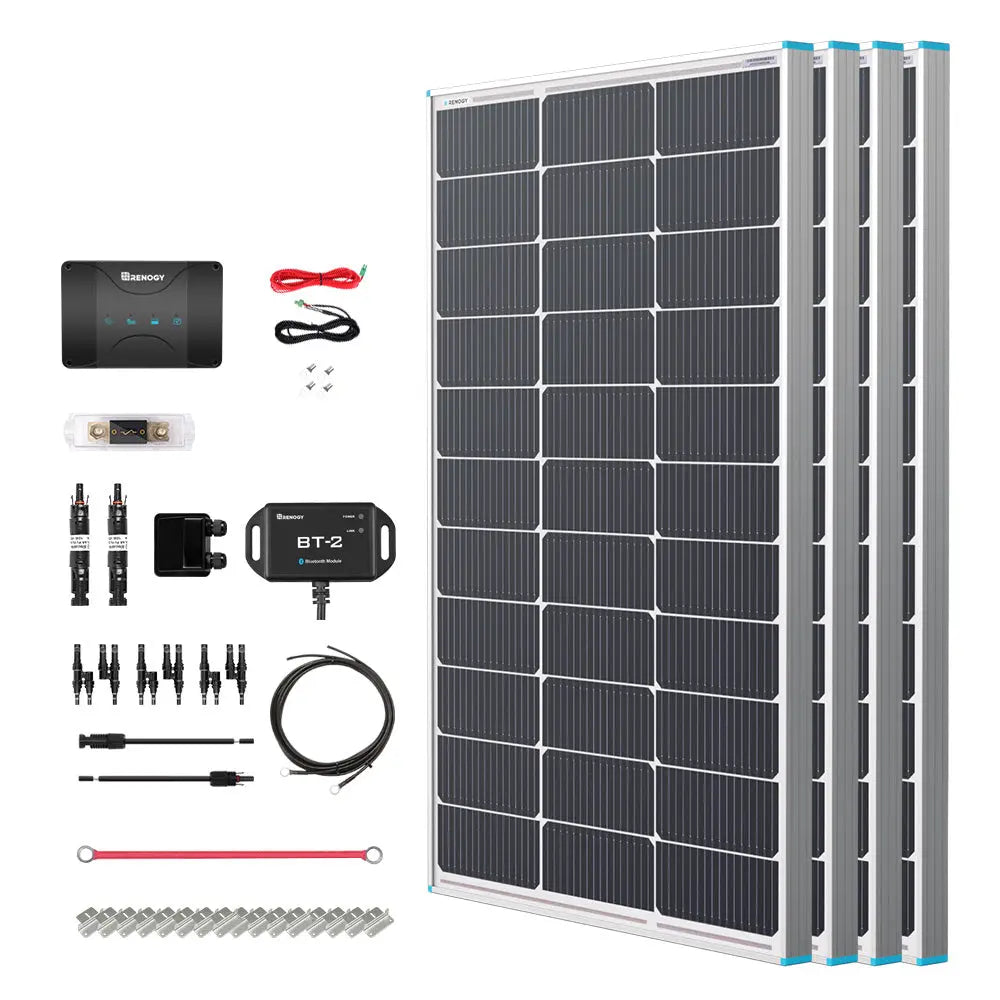

Three Panel Choices: Four 100W rigid N-type, two 200W rigid N-type (20.7% efficiency), or two 200W flexible panels for curved or low-profile roofs.
Broad Battery Support: Charging profiles for AGM/SLD, GEL, flooded, lithium and user-defined settings on 12V systems.
Soft Start for Stability: Soft-start charging protects battery stability and your vehicle's electrical system.
Rugged Rigid Panels: 1.1-1.2 mm aluminum frames with 20 pre-drilled mounting holes on rigid options.
Bluetooth Monitoring: An included BT-2 module enables wireless monitoring.

Need a Helping Hand? We’re Totally Here for You! Mon–Sat · 8:00 AM–9:30 PM EST Phone: +1 (972) 737-7434 Send us a message

CLICK TO CALL NOW

Renogy 400W 12V Essential Solar Kit with DC-DC Charger | 50A MPPT, Solar + Alternator

$799.99

Frequently Asked Questions

Do I need a separate solar charge controller?

No. The 50A DC-DC charger has MPPT built in and handles solar charging directly.

Can it charge from my vehicle's alternator?

Yes. It accepts alternator input up to 660W at 50A.

Which batteries are compatible?

12V AGM/SLD, GEL, flooded, lithium and user-defined battery profiles are supported.

DC-DC Charger	50A on-board charger with MPPT
System Voltage	12VDC (battery range 9-16V)
Max Charging Current	50A
Charging Efficiency	94%
Max Solar Input Voltage	30V / 50V
Max Solar Input Power	660W @ 50A
Max Alternator Input Power	660W @ 50A
Battery Types	AGM/SLD, GEL, FLD, LI, USER
Charger Dimensions / Weight	9.61 x 5.75 x 3.78 in / 4.10 lb
100W Rigid Panel	Voc 22.79V, Isc 5.31A, 34.1 x 22.8 x 1.2 in, 13.0 lb
200W Rigid Panel	Voc 37.44V, Isc 6.85A, 20.7% eff., 49.7 x 30.1 x 1.2 in, 23.4 lb
200W Flexible Panel	Voc 23.9V, Isc 10.74A, 16.7% eff., 63.2 x 29.4 x 0.1 in, 10.8 lb
Panel Operating Temperature	-40°F to 185°F (rigid); -40°F to 176°F (flexible)

DC-DC Charger	50A on-board charger with MPPT
System Voltage	12VDC (battery range 9-16V)
Max Charging Current	50A
Charging Efficiency	94%
Max Solar Input Voltage	30V / 50V
Max Solar Input Power	660W @ 50A
Max Alternator Input Power	660W @ 50A
Battery Types	AGM/SLD, GEL, FLD, LI, USER
Charger Dimensions / Weight	9.61 x 5.75 x 3.78 in / 4.10 lb
100W Rigid Panel	Voc 22.79V, Isc 5.31A, 34.1 x 22.8 x 1.2 in, 13.0 lb
200W Rigid Panel	Voc 37.44V, Isc 6.85A, 20.7% eff., 49.7 x 30.1 x 1.2 in, 23.4 lb
200W Flexible Panel	Voc 23.9V, Isc 10.74A, 16.7% eff., 63.2 x 29.4 x 0.1 in, 10.8 lb
Panel Operating Temperature	-40°F to 185°F (rigid); -40°F to 176°F (flexible)
