Renogy 1200W / 2500W 48V Off-Grid Solar Cabin Kit | 320W N-Type Panels, 3500W Inverter, 9.6kWh Battery Options
Flexible monthly payment options available for qualified customers at checkout.
At a Glance
- Solar Array: 1200/2500W
- N-Type Panels: 320W
- Inverter Charger: 3500W
- MPPT: 80A
- Battery Option: 9.6kWh
- System: 48V
Key Features
- 320W N-Type Solar Panels: High-efficiency N-type monocrystalline panels with an 18-busbar design and 22.2% module efficiency.
- 3500W Inverter Charger: 48V pure sine wave inverter charger with an integrated 80A/150V MPPT controller and 40A AC charger, up to 4400W PV input.
- EcoSleep Mode: Renogy states a 2-3 day off-grid trip can save 1200-1800Wh of energy in EcoSleep Mode.
- 9.6kWh Battery Options: Add four 12V 200Ah lithium batteries with Bluetooth or four 12V 200Ah deep cycle AGM batteries.
- Full Circuit Protection: Includes a 5-string combiner box, DC miniature circuit breakers, a DC breaker box and a 160A molded case breaker.
- Roof or Ground Mounting: Choose roof mount rails and flashing or 50 in tilt mount brackets for ground installs.

Choose options















Frequently Asked Questions
Can I use the no-battery kit with my existing batteries?
Can it connect to my home's grid?
Lithium or AGM: which battery option should I choose?
Renogy · Solar Kits & Systems · 48V Cabin Kit
Renogy 1200W / 2500W 48V Complete Solar Cabin Kit
Everything a tiny house, cabin or shed needs to go off-grid, engineered as one 48V system.
This complete 48V solar kit is designed for mobile homes, sheds and small cabins. Choose four or eight 320W N-type monocrystalline panels with 22.2% efficiency, paired with a 48V 3500W pure sine wave inverter charger that integrates an 80A/150V MPPT controller and a 40A AC charger. Add a 9.6kWh bank of lithium or AGM batteries, plus roof or ground mounting, and the kit includes the combiner box, breakers, cabling and BT-2 Bluetooth module to bring it all together.
Why it stands out
Off-Grid Power, Fully Engineered
Matched components, circuit protection and cabling, so your cabin system is planned before it arrives.
Best for: tiny houses, off-grid cabins, sheds and mobile homes that want a complete, pre-matched 48V solar system.
Key Features

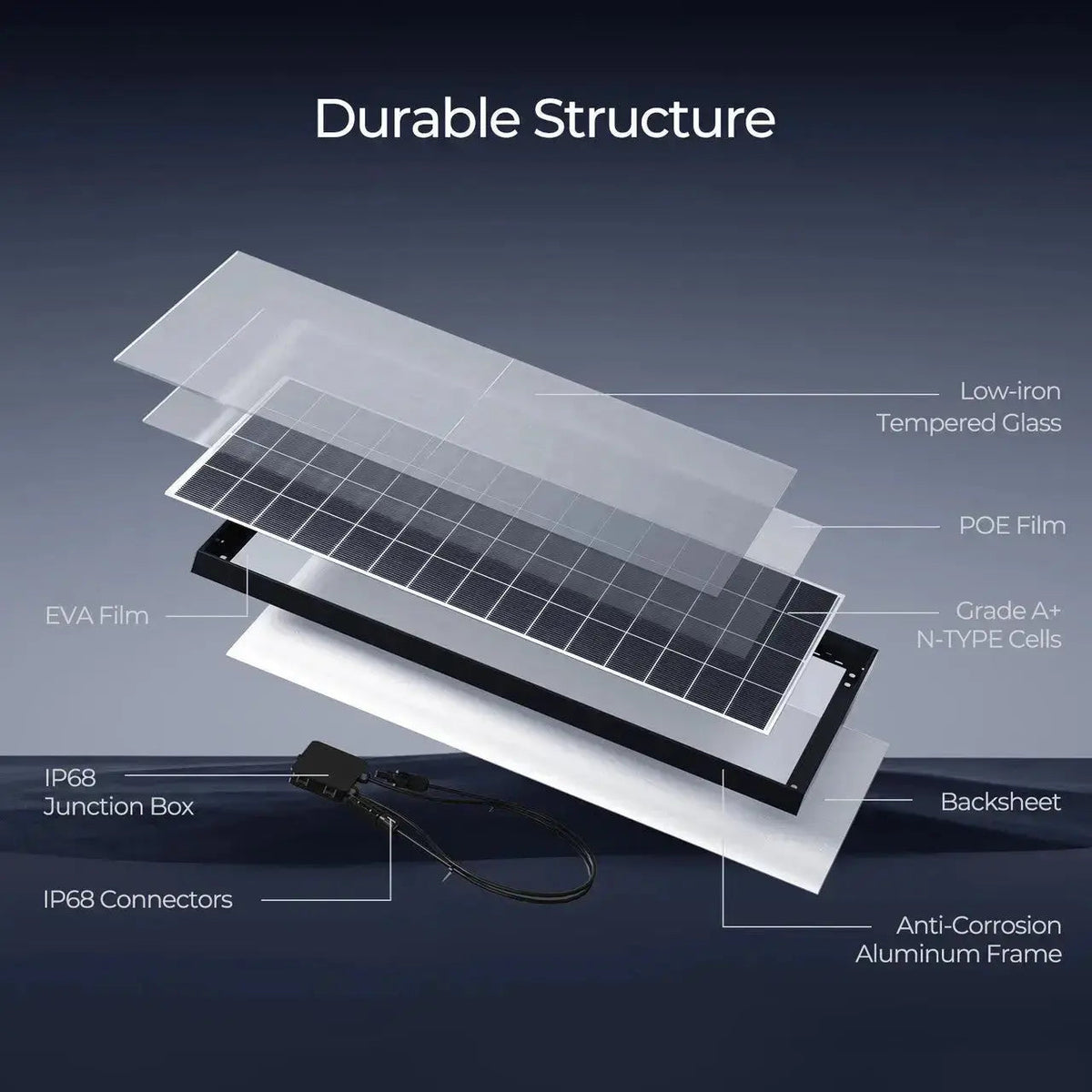

320W N-Type Solar Panels
High-efficiency N-type monocrystalline panels with an 18-busbar design and 22.2% module efficiency.

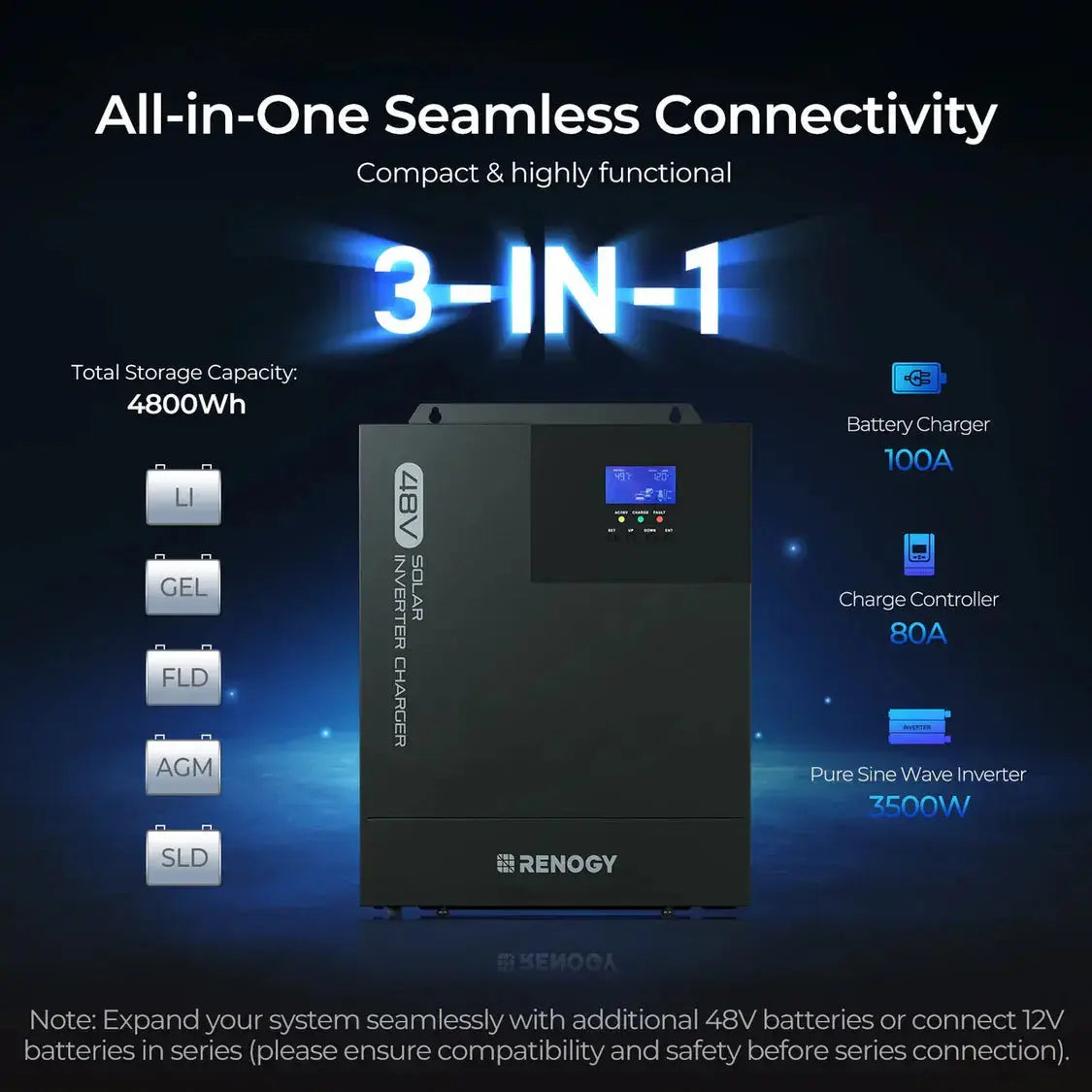

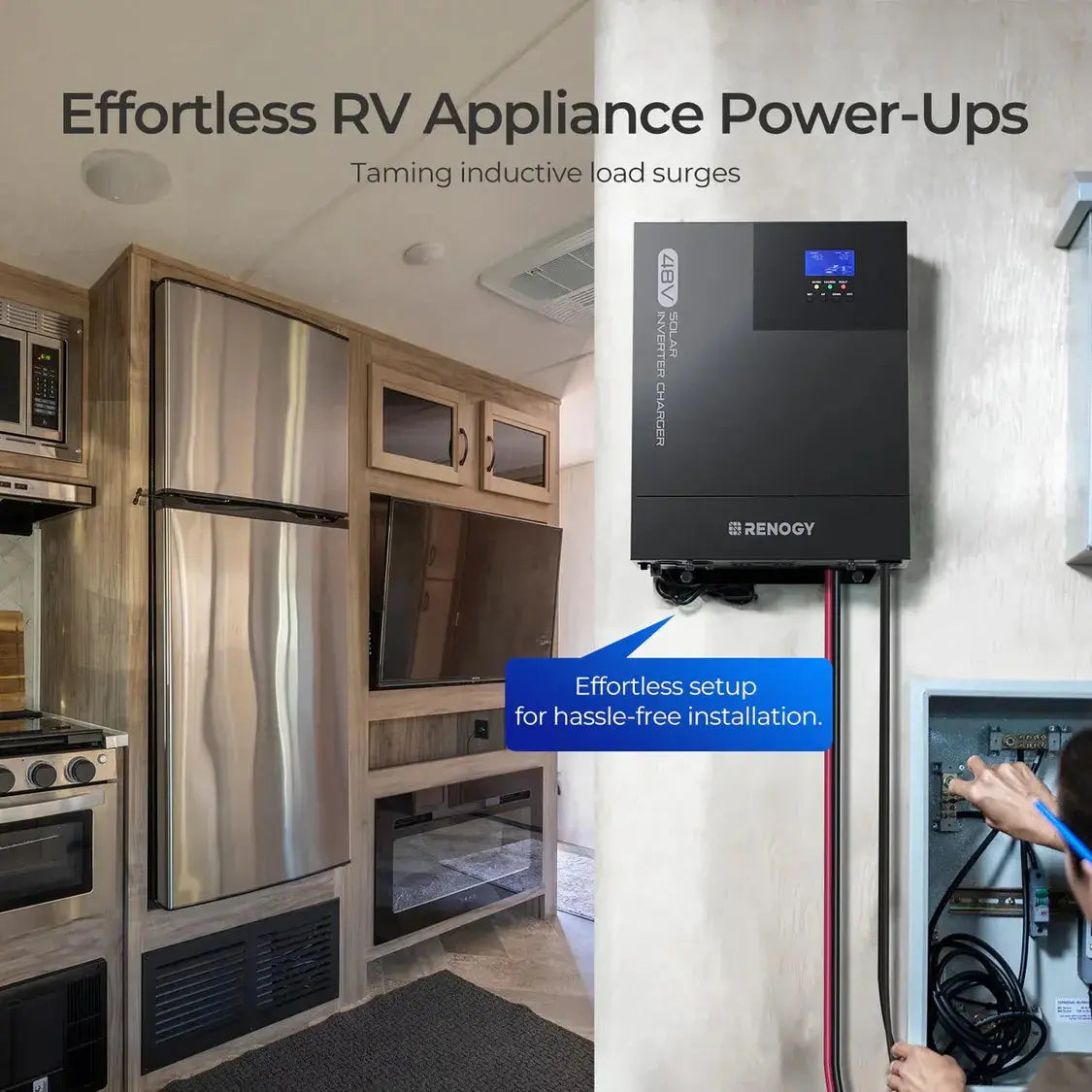

3500W Inverter Charger
48V pure sine wave inverter charger with an integrated 80A/150V MPPT controller and 40A AC charger, up to 4400W PV input.
EcoSleep Mode
Renogy states a 2-3 day off-grid trip can save 1200-1800Wh of energy in EcoSleep Mode.
9.6kWh Battery Options
Add four 12V 200Ah lithium batteries with Bluetooth or four 12V 200Ah deep cycle AGM batteries.
Full Circuit Protection
Includes a 5-string combiner box, DC miniature circuit breakers, a DC breaker box and a 160A molded case breaker.
Roof or Ground Mounting
Choose roof mount rails and flashing or 50 in tilt mount brackets for ground installs.
Bluetooth Monitoring
The included BT-2 Bluetooth module connects the system to the Renogy app.
Cabling Included
Panel adaptor kits, PV wire, tray cables and 1AWG battery-inverter cables are included.
Choose Your Configuration
Technical Specifications
| Solar Panels | 4 or 8 x 320W N-type monocrystalline |
|---|---|
| Panel Efficiency | 22.2% |
| Panel Voc / Isc | 43.82V / 8.92A |
| Panel Vmp / Imp | 37.85V / 8.46A |

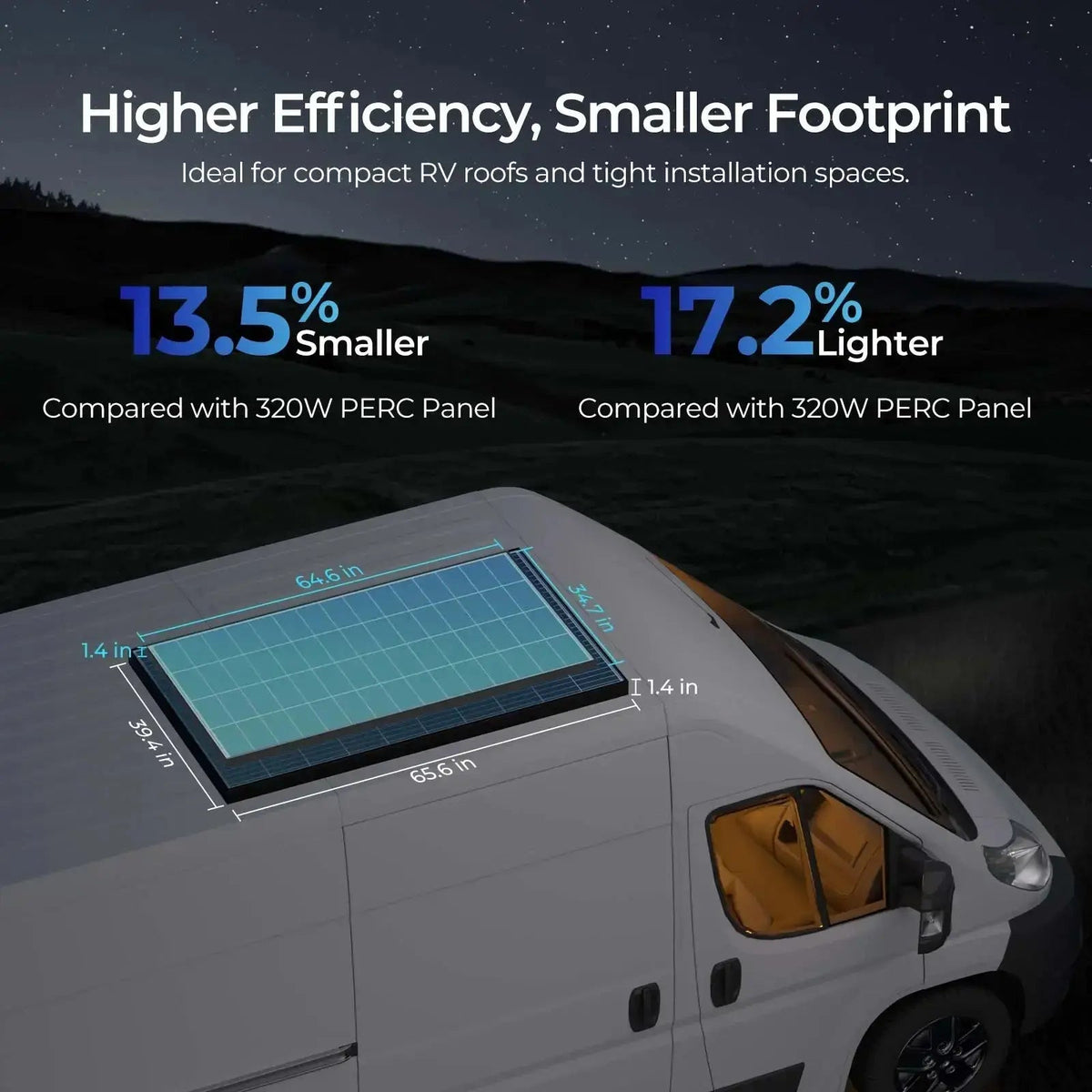

| Panel Dimensions | 64.6 x 34.7 x 1.4 in |
| Panel Weight | 32.9 lb |
| Inverter Rated Power | 3500W pure sine wave |
| Battery System Voltage | 48V |
| AC Output | 120VAC (adjustable 100-120VAC) |
| AC Input Range | 85-140VAC |
| Max AC Charging Current | 40A |
| Max PV Input Power | 4400W |
| Max PV Charging Current | 80A |
| Max PV Input Voltage | 150V |
| Inverter Peak Efficiency | >95% |
| Lithium Battery Option | 4 x 12V 200Ah LiFePO4, 2560Wh each, 5000 cycles |
| AGM Battery Option | 4 x 12V 200Ah deep cycle AGM, 500 cycles at 50% DOD |
| Monitoring | BT-2 Bluetooth module |
| Panel Warranty | 10-year output, plus material and workmanship |
*Performance figures are manufacturer ratings under standard test conditions. Real-world output varies with sunlight, temperature, installation and load. Specifications may change as Renogy updates the model.

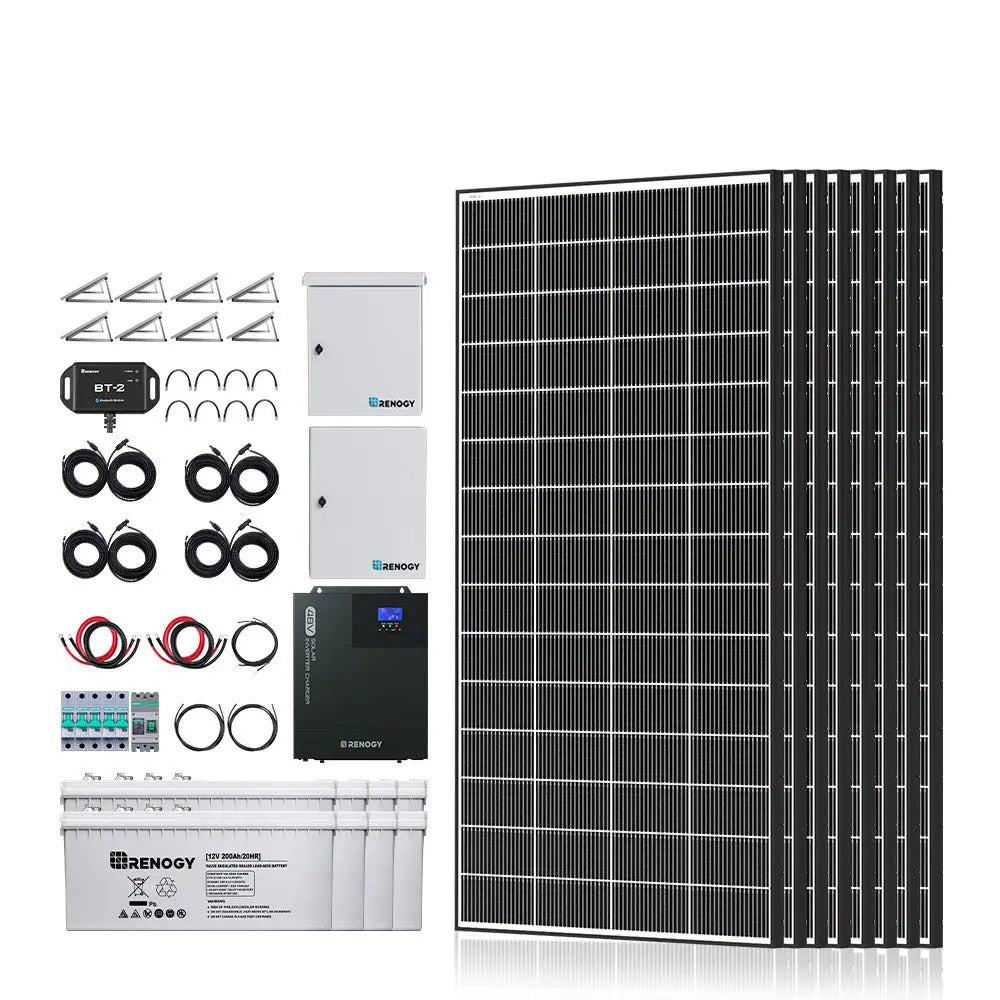

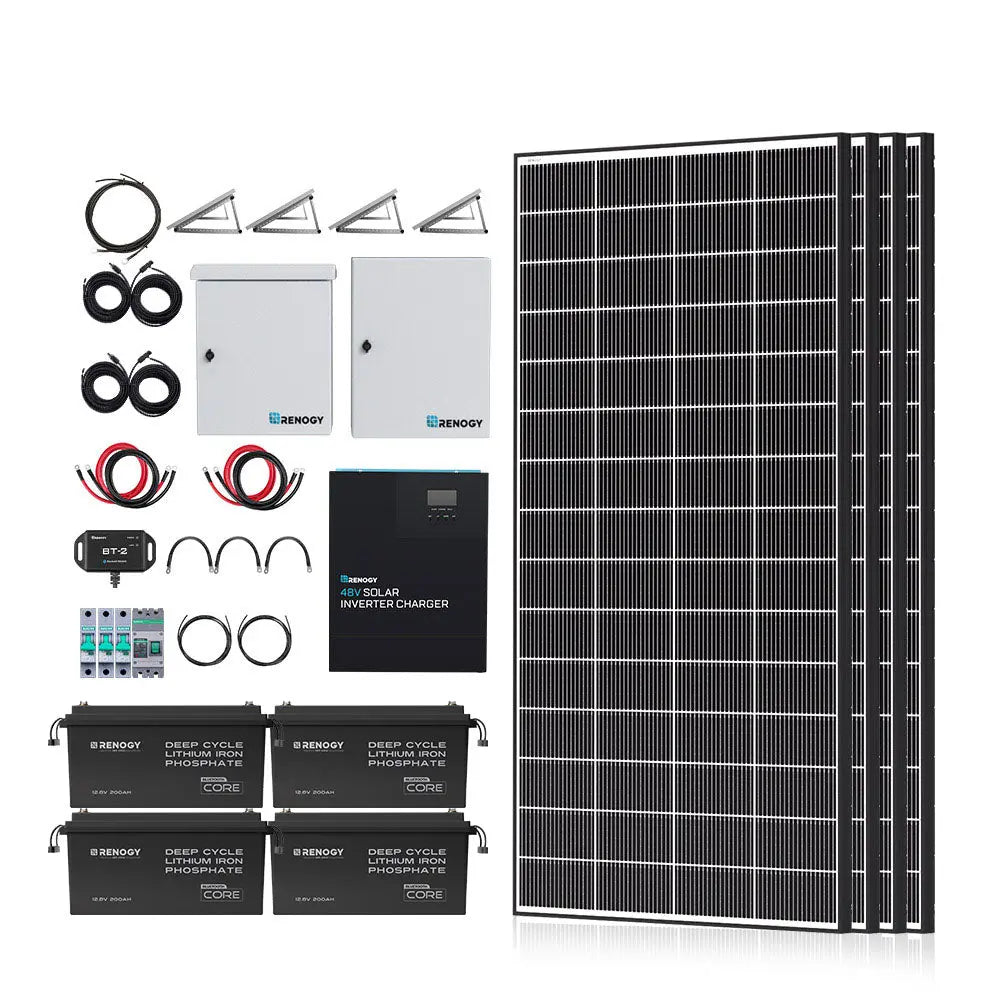

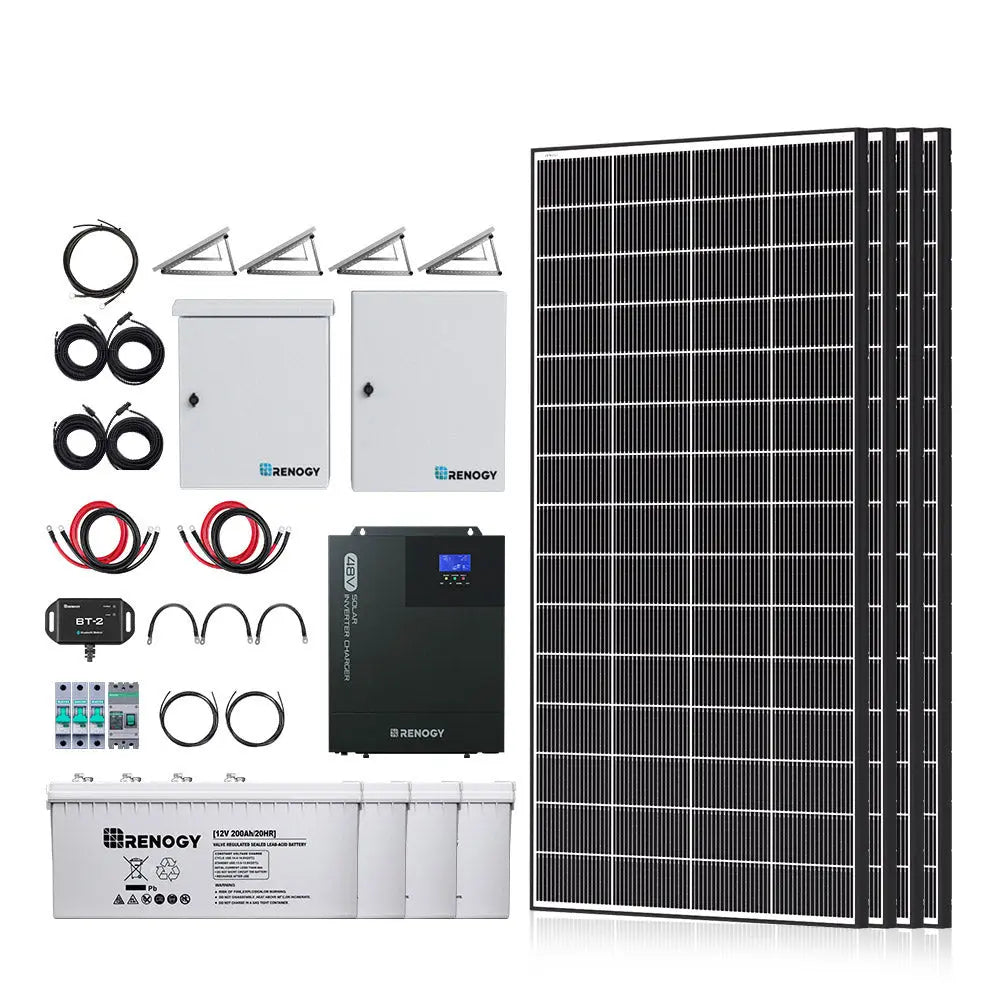

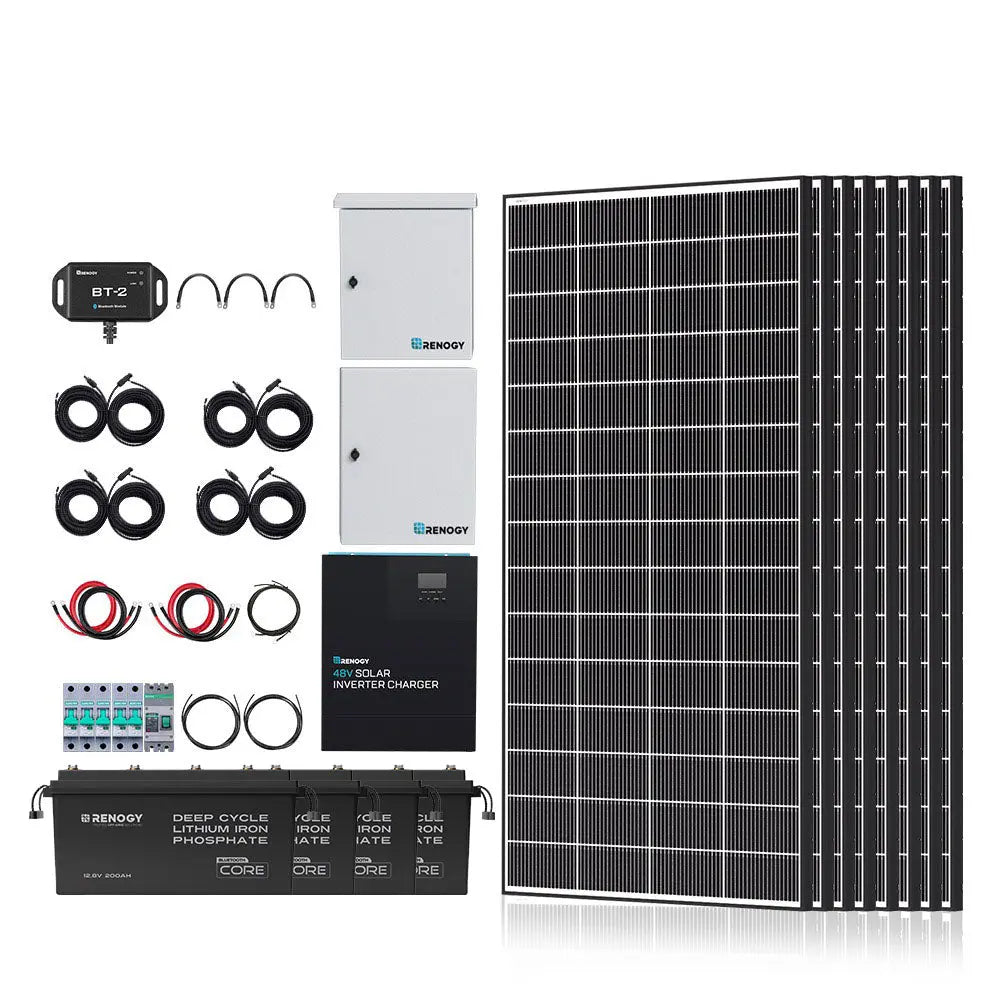

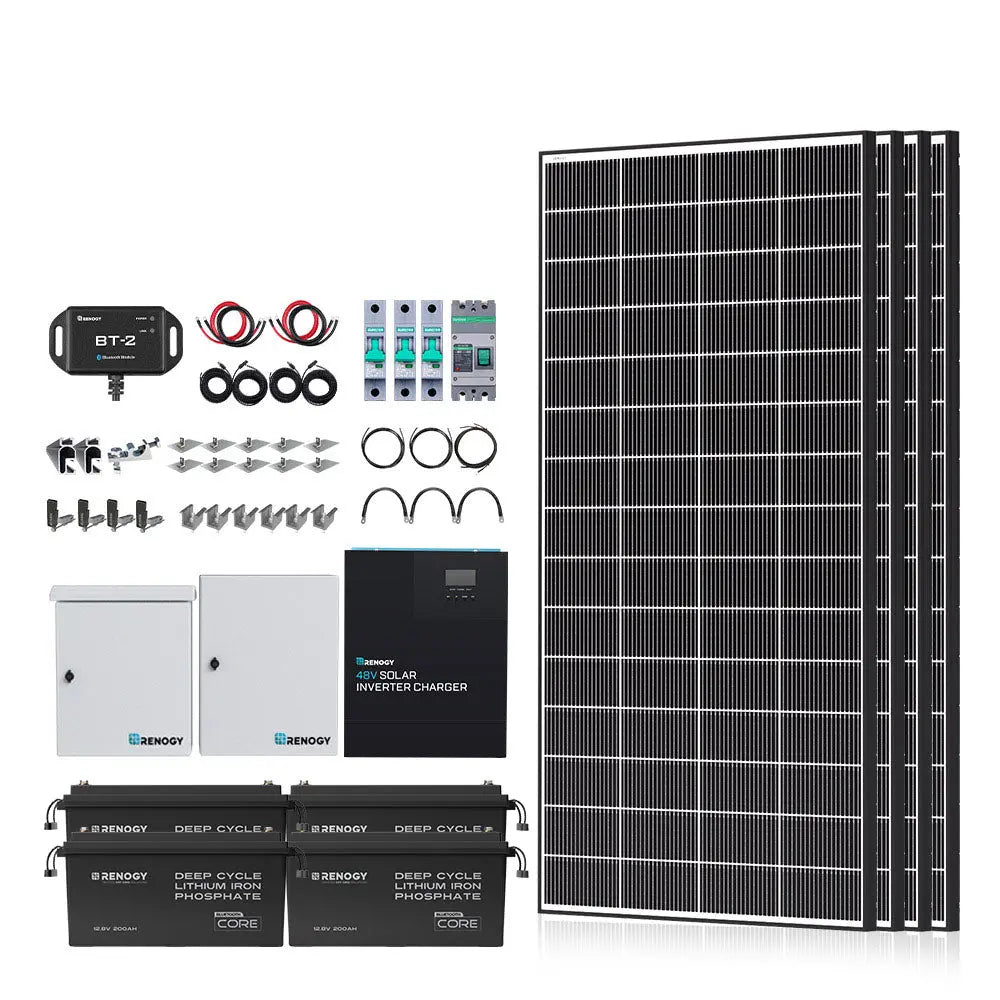

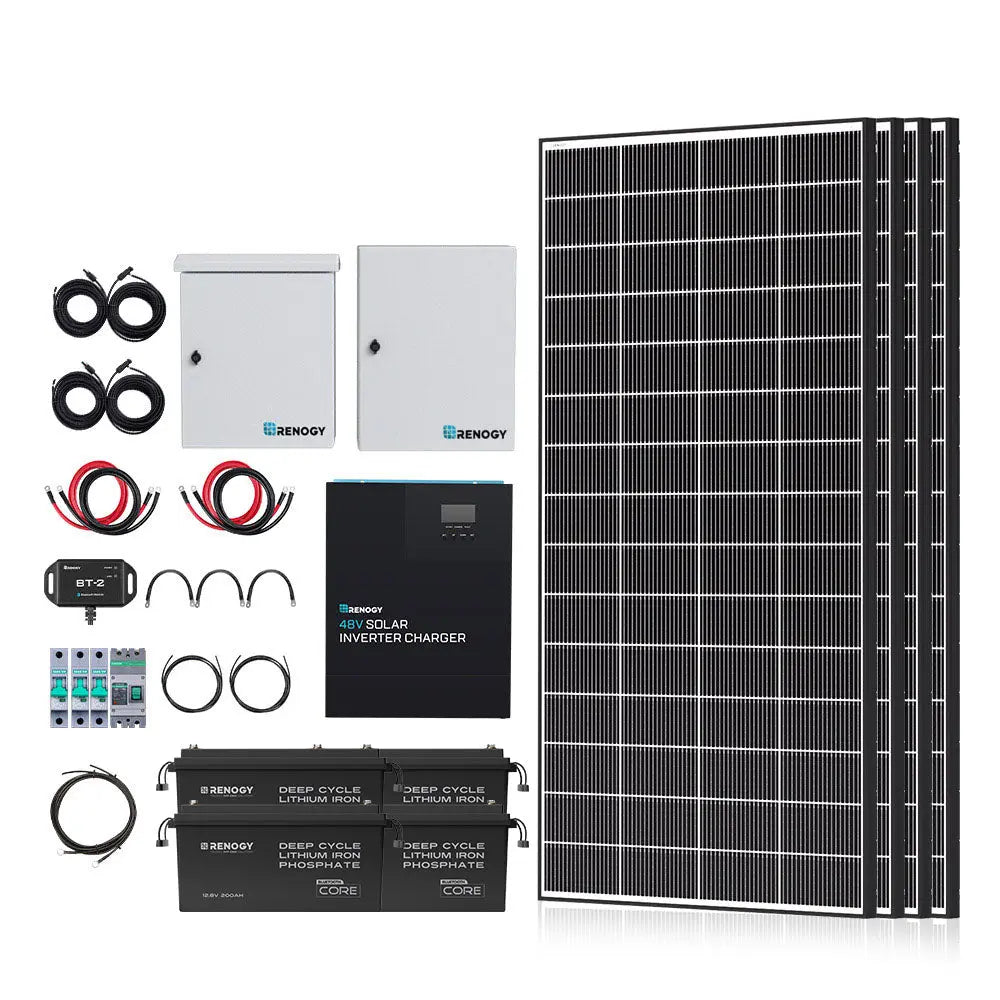

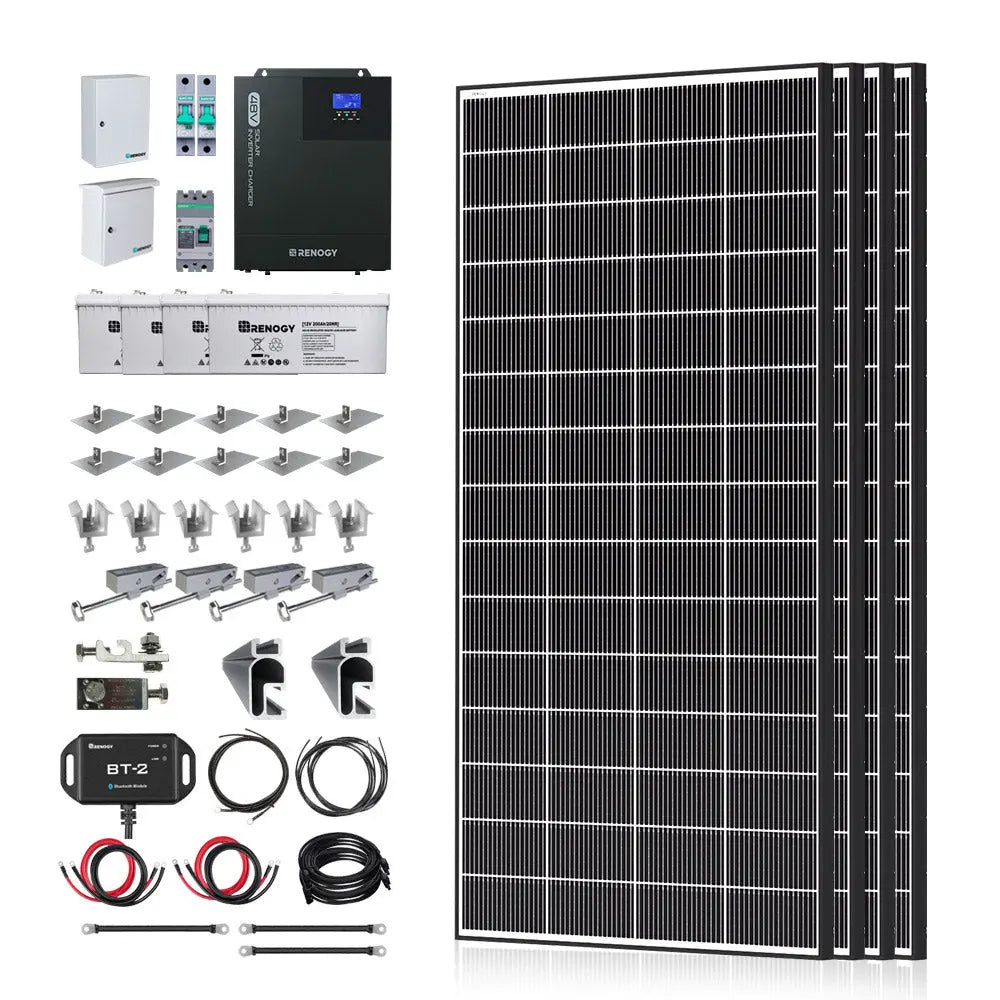

What's in the Box
- 320W N-type monocrystalline solar panels (x4 for 1200W, x8 for 2500W)
- 48V 3500W pure sine wave solar inverter charger
- 40ft 10AWG solar panel to charge controller adaptor kits (x2 for 1200W, x4 for 2500W)
- 5-string solar combiner box
- 16A 1P DC miniature circuit breakers (x2 for 1200W, x4 for 2500W)
- DC circuit breaker box
- 32A 1P DC miniature circuit breaker (1200W) or 50A 1P miniature circuit breaker (2500W)
- 16ft battery to charge controller tray cables (pair)
- 8ft 8AWG solar stranded copper PV wire (x2)
- 160A 2P DC molded case circuit breaker (x1 for 1200W, x2 for 2500W)
- 8ft 1AWG copper battery inverter cables, pair (x2)
- BT-2 Bluetooth module
- Lithium option: 4 x 12V 200Ah lithium batteries and 3 x 1AWG 12 in battery interconnect cables
- Roof mount option: 2 rails, 1 grounding lug, 10 flashings, 4 end clamps, 6 mid clamps
- Ground mount option: 4 x 50 in tilt mount brackets
Ownership & Support
- Backed by Renogy's manufacturer warranty (see specifications for model-specific terms)
- Need help sizing a system? We can help you match panels, batteries, controllers and inverters
- Professional installation by a qualified electrician is recommended for AC and high-voltage systems
- Questions before you buy? Contact Your Tech Haven at support@yourtechhaven.com or (972) 737-7434
Renogy 1200W / 2500W 48V Complete Solar Cabin Kit FAQs
Can I use the no-battery kit with my existing batteries?
Yes, if you already have a 48V battery system. The inverter charger works only with 48V battery systems and is not compatible with 24V.
Can it connect to my home's grid?
It can serve as standalone backup for a grid-tied home, but Renogy notes a transfer switch is needed. Consult a professional for net-metering or advanced grid integration.
Lithium or AGM: which battery option should I choose?
Both provide 9.6kWh. The lithium batteries are rated for 5000 cycles at 44.53 lb each; the AGM batteries are rated for 500 cycles at 50% DOD and weigh 127.9 lb each.
How long do the panels last?
Renogy states the panels remain at least 80% efficient over a 25-year span, backed by a 10-year output warranty.
Does the kit include mounting hardware?
Mounting is optional. Roof mount and ground (tilt) mount options are available; panels also have pre-drilled holes for custom mounting.
