Will it work with my existing charge controller and inverter?

It works with most standard solar equipment, including conventional charge controllers and inverters. Renogy recommends LiFePO4-compatible chargers.

What is the warranty?

A 5-year prorated material and workmanship warranty from Renogy.

Will it work with my existing charge controller and inverter?

It works with most standard solar equipment, including conventional charge controllers and inverters. Renogy recommends LiFePO4-compatible chargers.

What is the warranty?

A 5-year prorated material and workmanship warranty from Renogy.

Renogy Core Mini 12V 100Ah DuoHeat LiFePO4 Battery - view 1

Renogy Core Mini 12V 100Ah DuoHeat LiFePO4 Battery - view 3

Renogy Core Mini 12V 100Ah DuoHeat LiFePO4 Battery - view 4

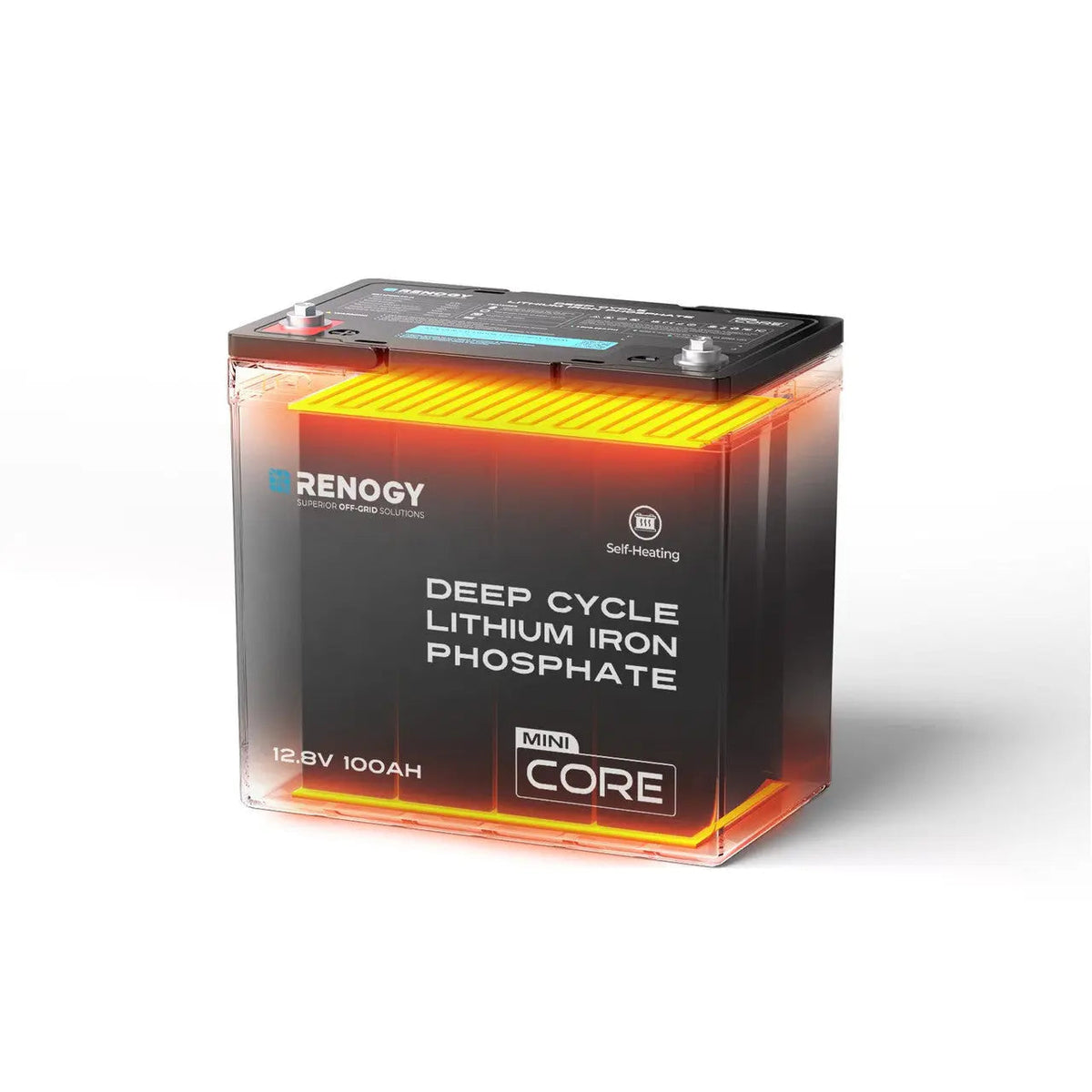

Renogy Core Mini 12V 100Ah DuoHeat LiFePO4 Battery - view 5

Renogy Core Mini 12V 100Ah DuoHeat LiFePO4 Battery - view 6

Renogy Core Mini 12V 100Ah DuoHeat LiFePO4 Battery - view 7

Renogy Core Mini 12V 100Ah DuoHeat LiFePO4 Battery - view 8

Renogy Core Mini 12V 100Ah DuoHeat LiFePO4 Battery - view 9

Renogy Core Mini 12V 100Ah DuoHeat LiFePO4 Battery - view 10

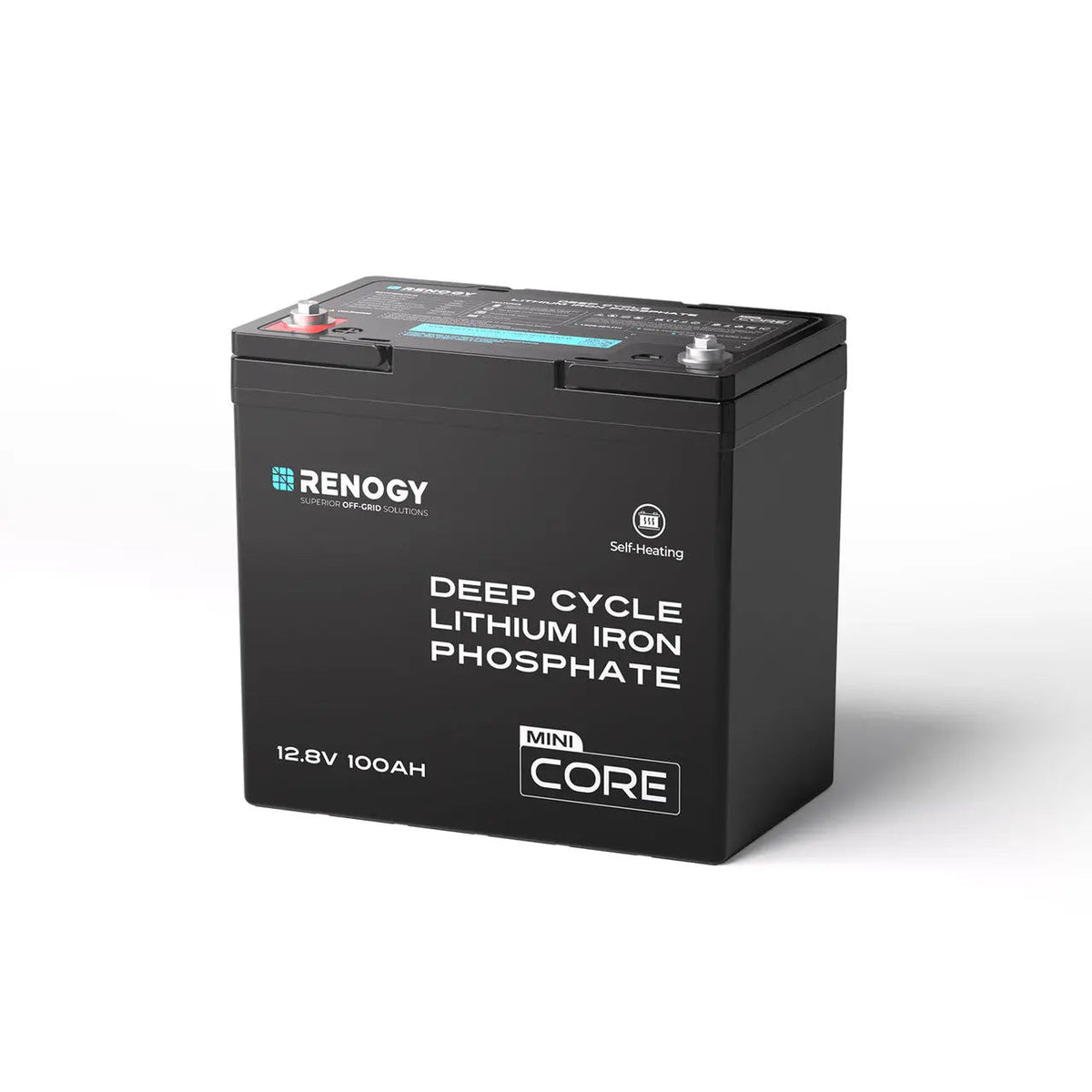

Renogy Core Mini 12V 100Ah DuoHeat LiFePO4 Battery - view 11

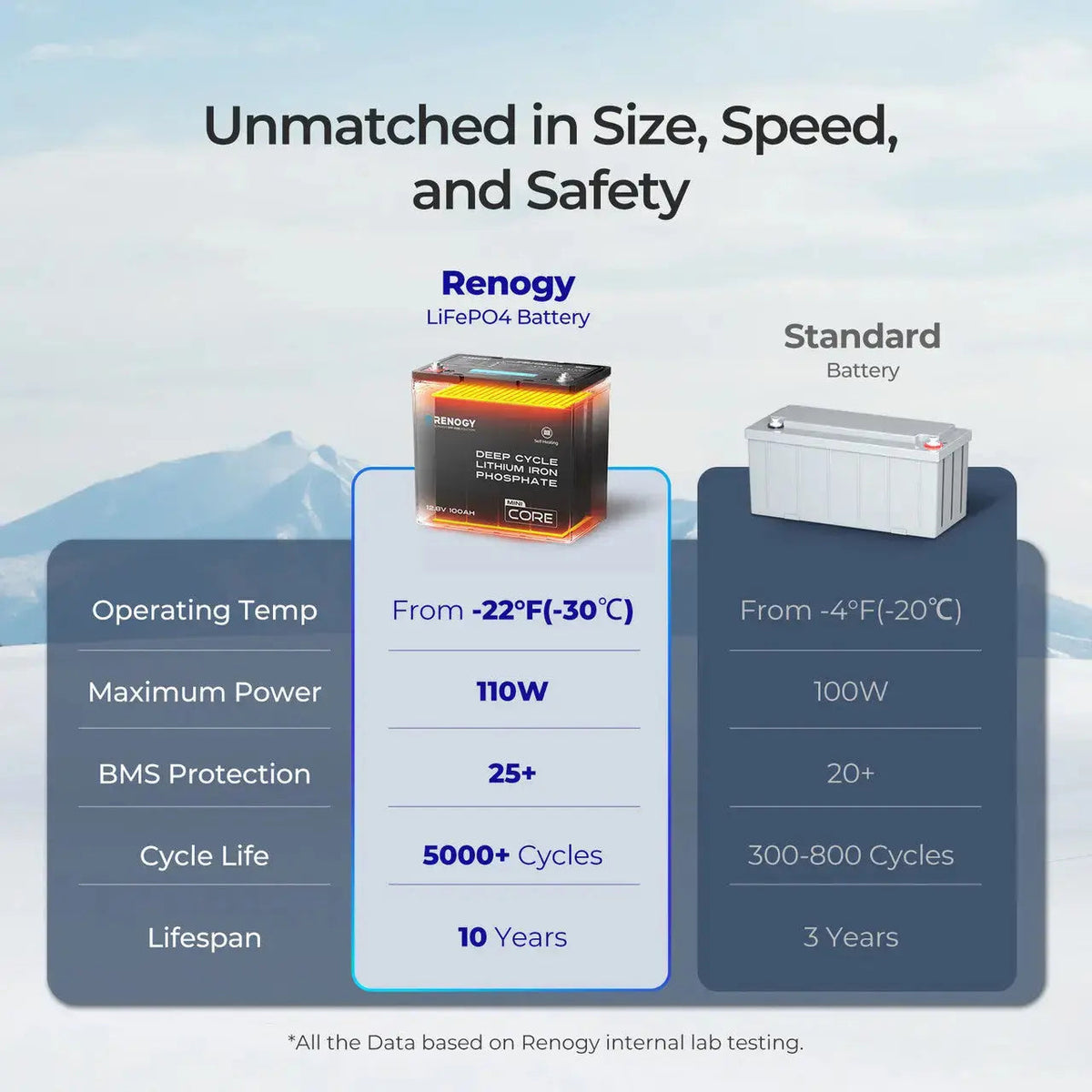

Renogy Core Mini 12V 100Ah DuoHeat LiFePO4 Battery - view 12

Renogy

Renogy Core Mini 12V 100Ah DuoHeat LiFePO4 Battery | Group 22NF, 110W Self-Heating, IP65

$356.99

Quantity:

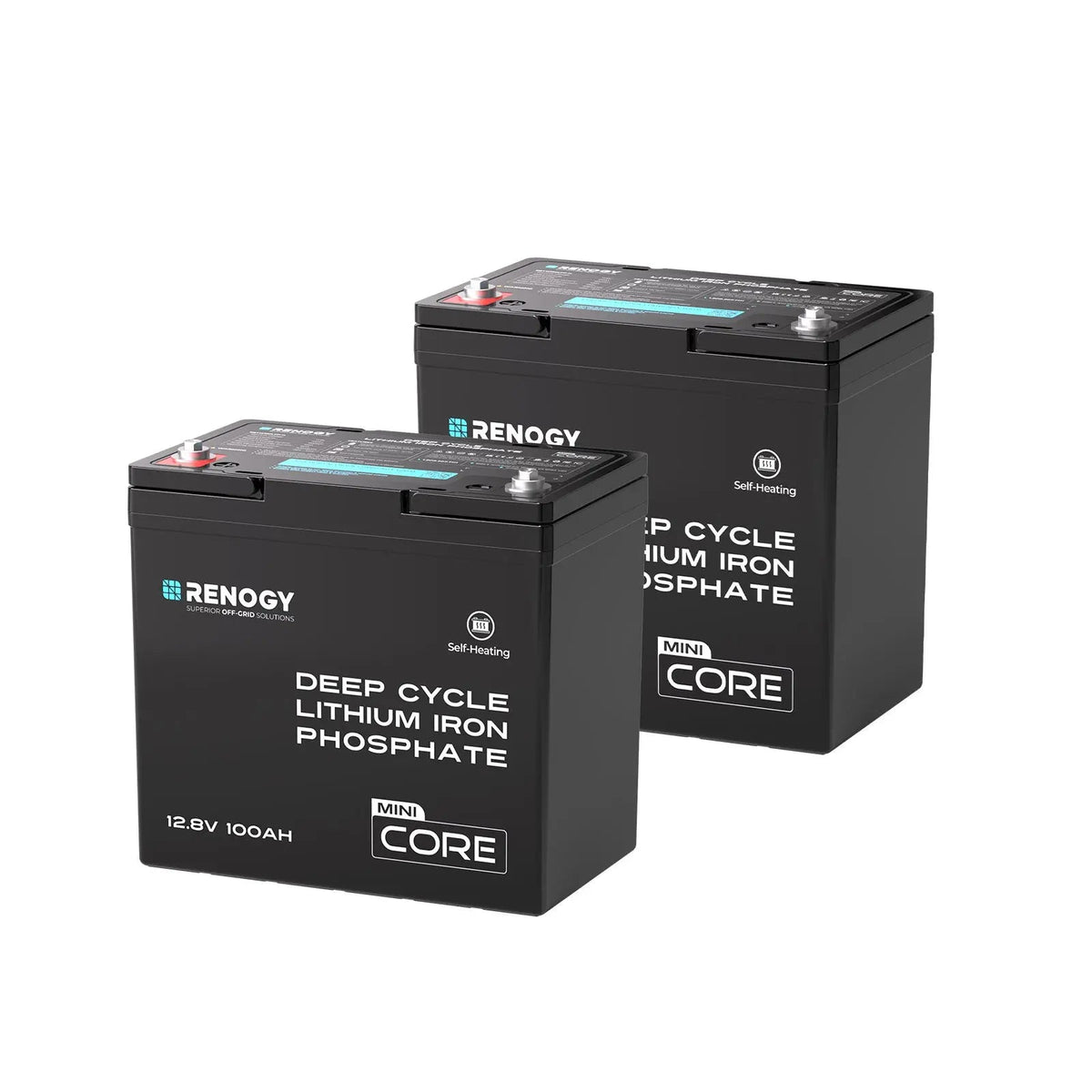

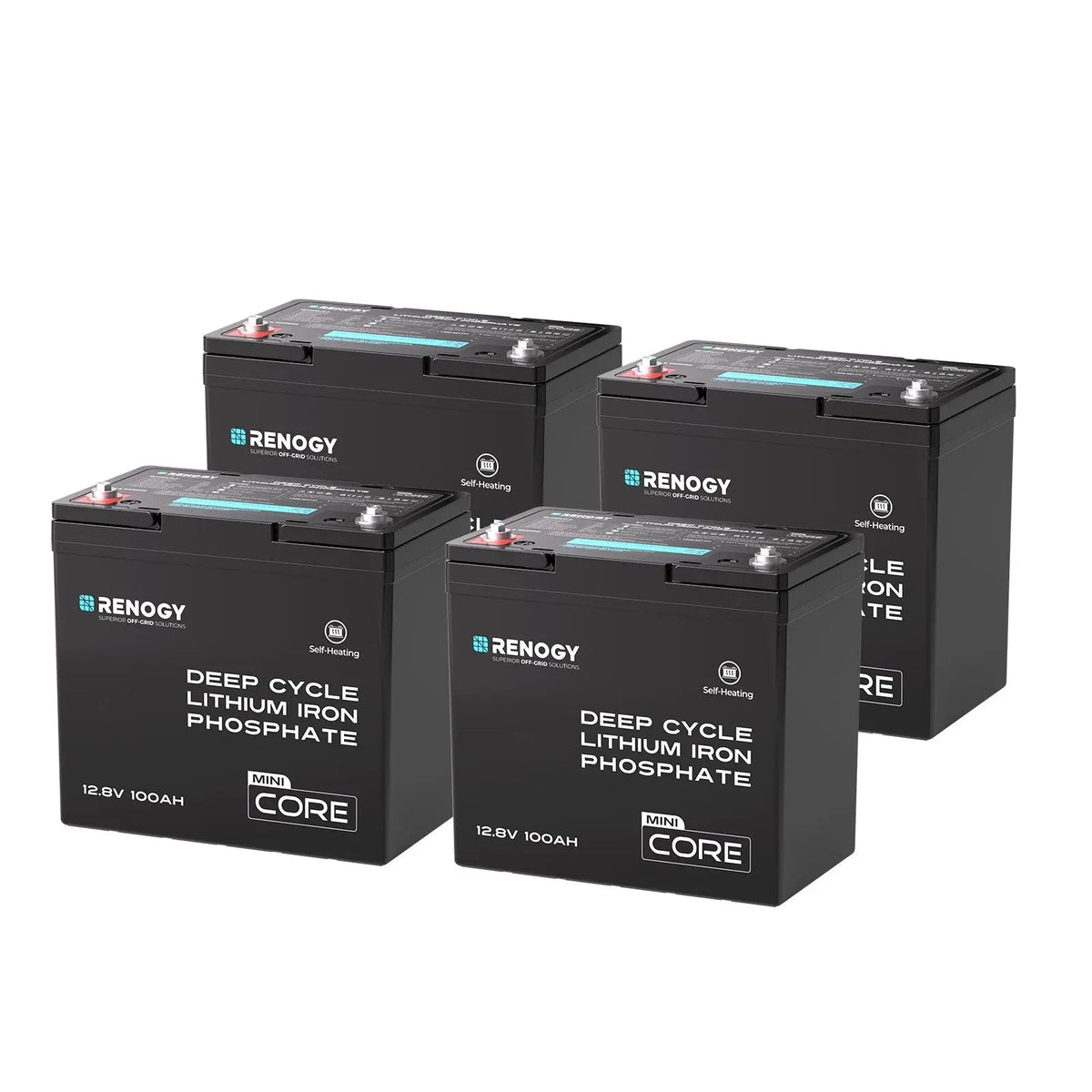

1 Pack 2 Pack 4 Pack

Variant

...

......

...

Buy now, pay over time with Affirm
Flexible monthly payment options available for qualified customers at checkout.

Refund Policy

At a Glance

Capacity: 100Ah
Group Size: 22NF
DuoHeat: 110W
Cycles: 5000
Rated: IP65
Expandable: 4S4P

Key Features

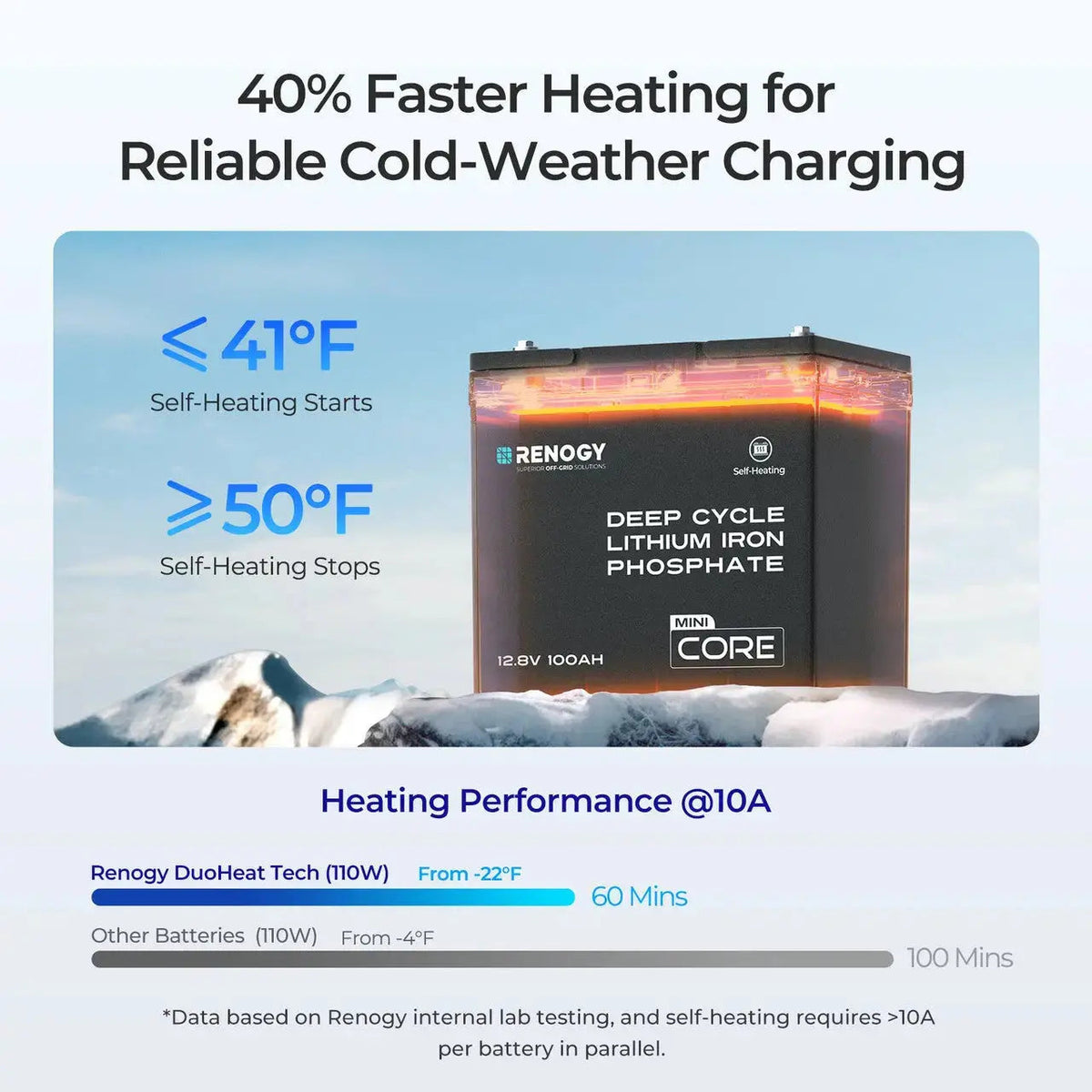

DuoHeat Dual Heating Pads: 110W of heating warms the cells 40% faster, switching on at 41°F and off at 50°F.
Charge-Ready from -22°F: Reaches charge-ready status from -22°F in about 60 minutes, with a charge temperature range down to -22°F.

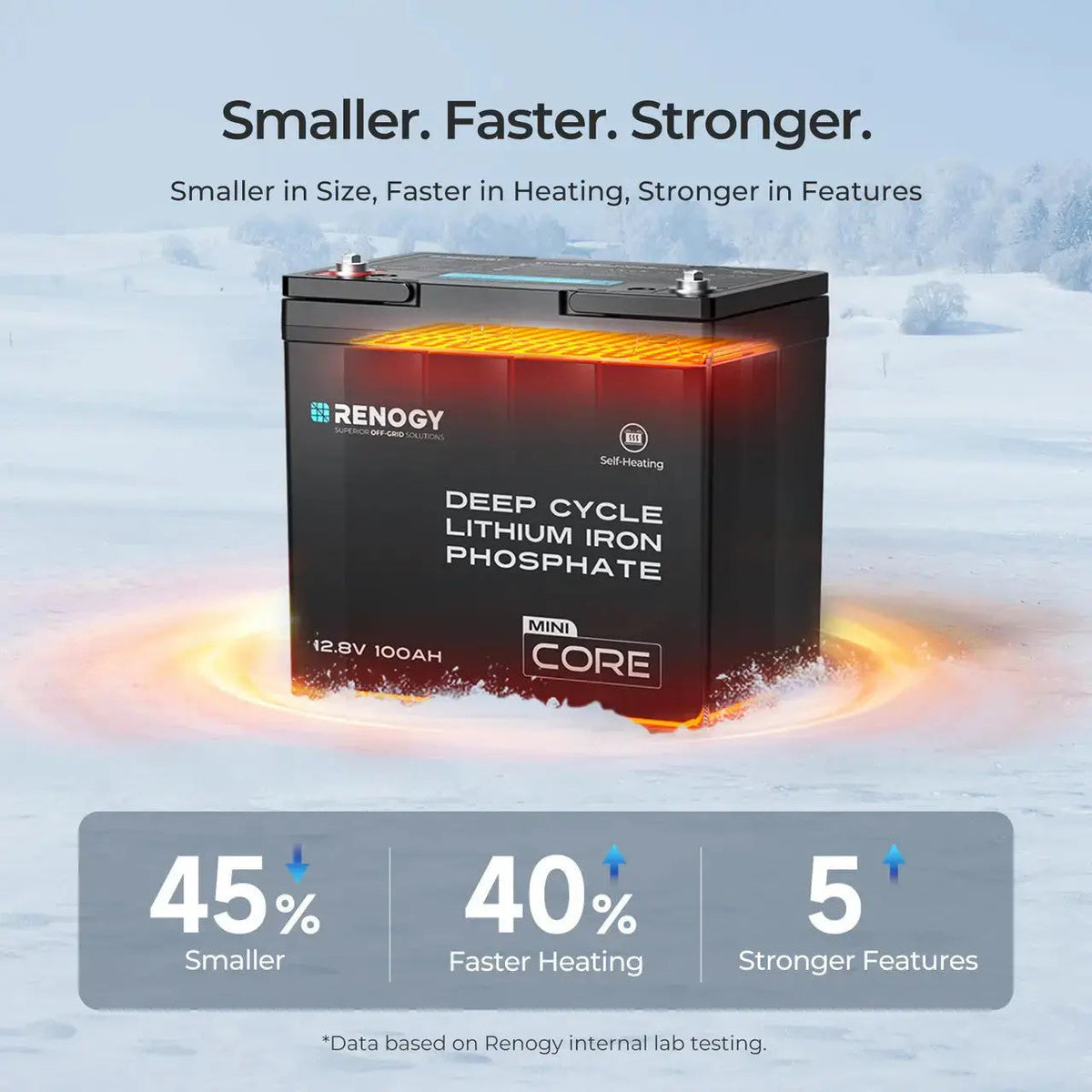

Group 22NF Compact Size: Fits tight battery boxes and compartments where standard 100Ah batteries won't, and weighs 11% less than standard batteries.

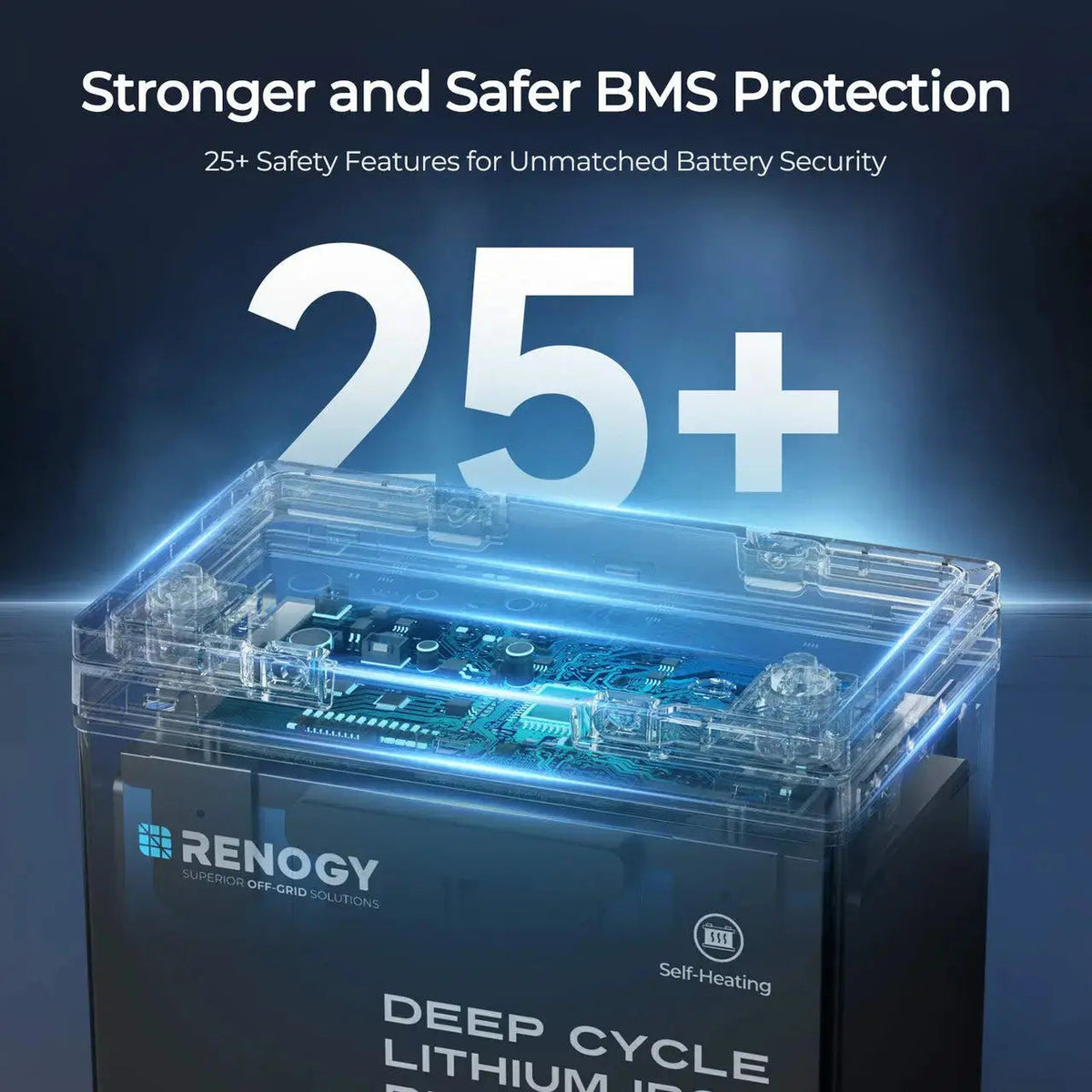

100A BMS, 300A Peak: Delivers 100A continuous charge and discharge with a 300A peak for 10 seconds, protected by 25+ safety features.
Expand to 4S4P: Build 12V, 24V, 36V or 48V systems with up to 16 batteries for up to 20.48kWh.

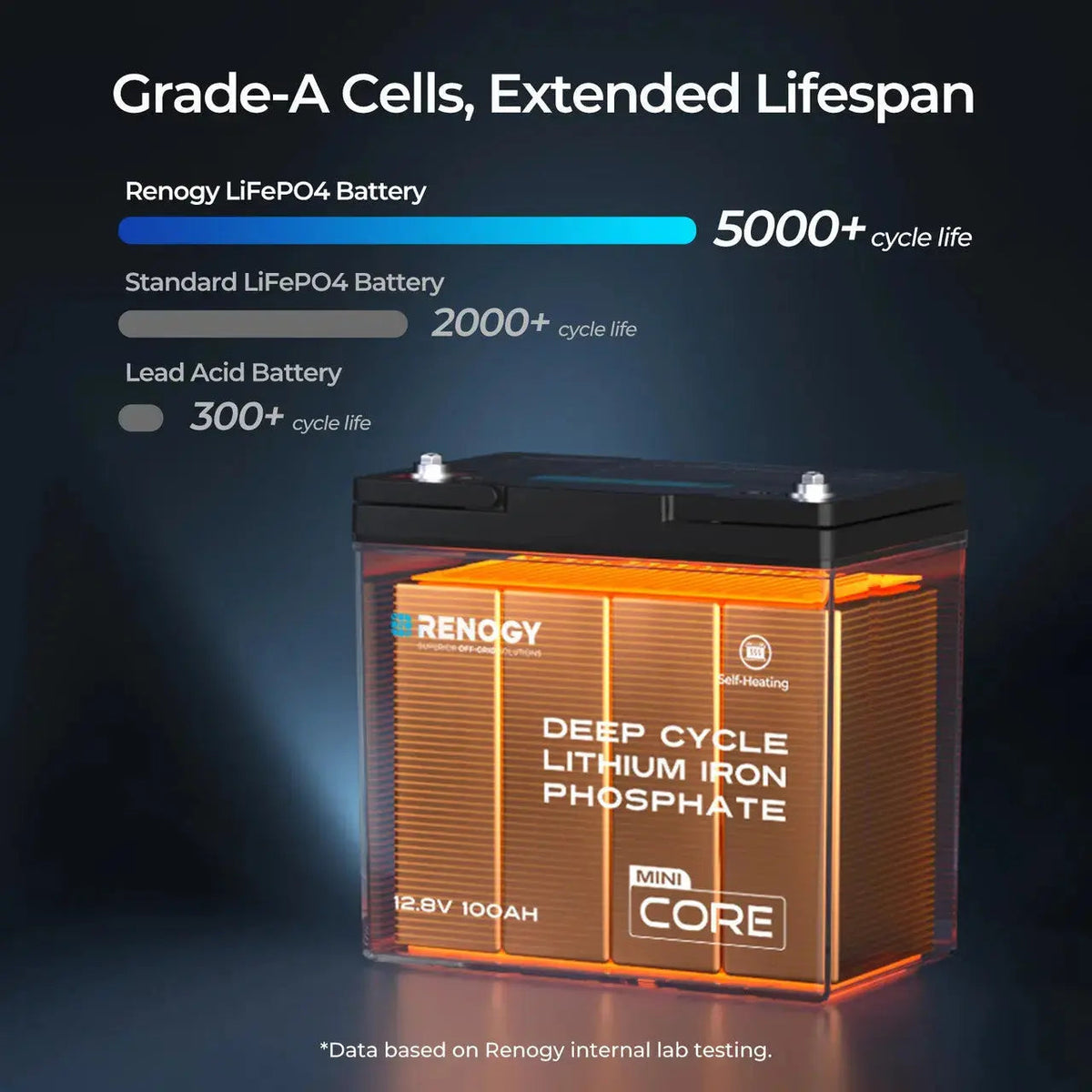

5000-Cycle Lifespan: Grade-A LiFePO4 cells rated for 5000 cycles at 80% depth of discharge.

Need a Helping Hand? We’re Totally Here for You! Mon–Sat · 8:00 AM–9:30 PM EST Phone: +1 (972) 737-7434 Send us a message

CLICK TO CALL NOW

Renogy Core Mini 12V 100Ah DuoHeat LiFePO4 Battery | Group 22NF, 110W Self-Heating, IP65

$356.99

Frequently Asked Questions

Can I charge it in sub-freezing weather?

Yes. DuoHeat activates at 41°F with at least 10A of charge current per battery and brings the battery to charge-ready from -22°F in about 60 minutes.

Can I wire it in series for 24V or 48V?

Yes. It supports series and parallel connections up to 4S4P.

Does it have Bluetooth?

No built-in Bluetooth, but it is compatible with Renogy's external monitoring devices.

Chemistry	Lithium Iron Phosphate (LiFePO4)
Nominal Voltage	12V
Rated Capacity	100Ah (0.5C, 25°C)
Voltage Range	10V to 14.6V
Charge Voltage	14.6V
Max. Continuous Charge / Discharge	100A / 100A
Peak Discharge Current	300A (10 seconds)
Cycle Life	5000 cycles (80% DOD)
Self-Heating	DuoHeat dual pads, 110W; on at 41°F, off at 50°F; requires ≥10A charge current

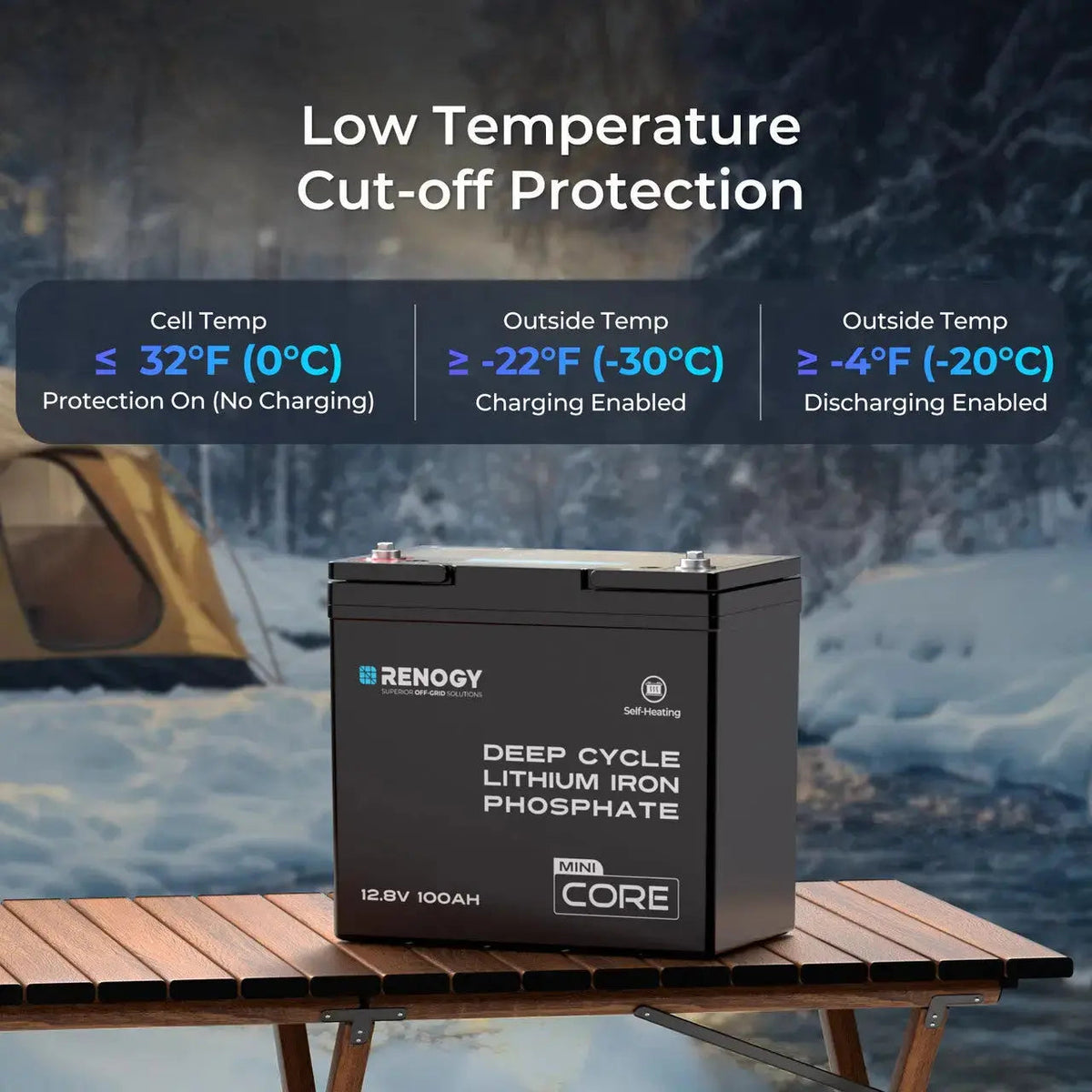

Charge Temperature	-22°F to 131°F (-30°C to 55°C)
Discharge Temperature	-4°F to 140°F (-20°C to 60°C)
Connection	Series & parallel, up to 4S4P
Terminal Bolt	M8 x 1.25 x 12 mm
IP Rating	IP65

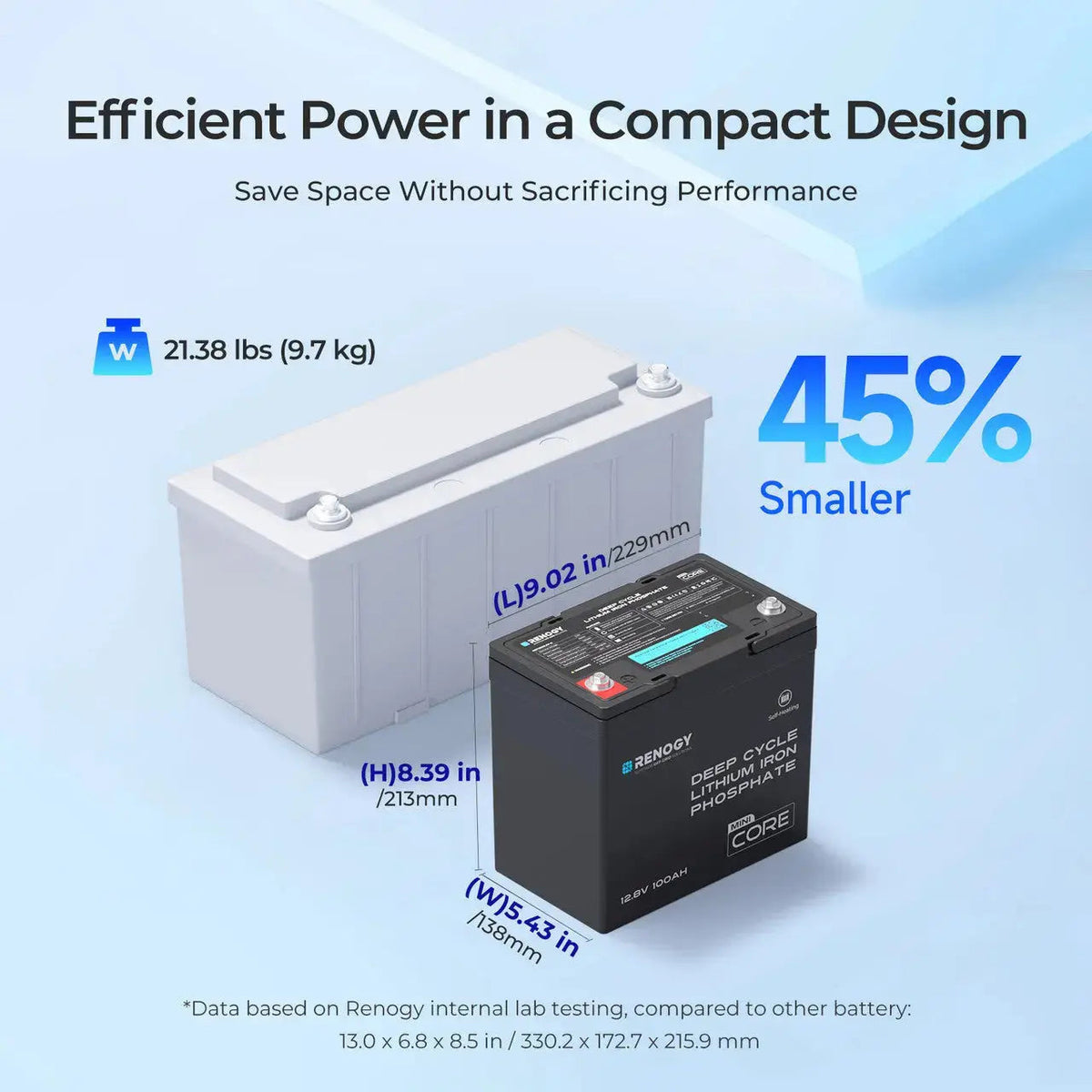

Dimensions	9.02 x 5.43 x 8.39 in (229 x 138 x 213 mm)
Weight	21.38 lb (9.7 kg)
Certifications	MSDS, UN38.3, FCC, CE, PSE, IC, RoHS, UKCA
Warranty	5-year prorated material and workmanship

Chemistry	Lithium Iron Phosphate (LiFePO4)
Nominal Voltage	12V
Rated Capacity	100Ah (0.5C, 25°C)
Voltage Range	10V to 14.6V
Charge Voltage	14.6V
Max. Continuous Charge / Discharge	100A / 100A
Peak Discharge Current	300A (10 seconds)
Cycle Life	5000 cycles (80% DOD)
Self-Heating	DuoHeat dual pads, 110W; on at 41°F, off at 50°F; requires ≥10A charge current
Charge Temperature	-22°F to 131°F (-30°C to 55°C)
Discharge Temperature	-4°F to 140°F (-20°C to 60°C)
Connection	Series & parallel, up to 4S4P
Terminal Bolt	M8 x 1.25 x 12 mm
IP Rating	IP65
Dimensions	9.02 x 5.43 x 8.39 in (229 x 138 x 213 mm)
Weight	21.38 lb (9.7 kg)
Certifications	MSDS, UN38.3, FCC, CE, PSE, IC, RoHS, UKCA
Warranty	5-year prorated material and workmanship
