Renogy 400W 12V Complete Solar Kit with 2.4kWh Batteries | 40A MPPT, 2000W Inverter
Flexible monthly payment options available for qualified customers at checkout.
At a Glance
- Solar Array: 400W
- Storage: 2.4kWh
- Rover MPPT: 40A
- Inverter: 2000W
- Peak Power: 4000W
- Est. Daily Output: 2-2.5kWh
Key Features
- Four 100W N-Type Panels: 16BB N-type panels with aluminum alloy frames and reinforced corners for durability on the road or roof.
- Rover Li 40A MPPT Controller: Auto-detects 12V/24V systems, accepts up to 100VDC PV input, and is designed to dissipate heat while tracking maximum power.
- 2000W Pure Sine Wave Inverter: 2000W continuous and 4000W peak to run household appliances from your battery bank.
- Smart Lithium Option: Two 12V 100Ah LiFePO4 batteries with Bluetooth, self-heating and a double active safety system.
- Deep Cycle AGM Option: Two 12V 100Ah AGM batteries for a conventional, wide-temperature solution, with a 500A shunt battery monitor included.
- Complete Wiring and Protection: Z mounts, Y-branch connectors, adaptor kit, tray cables, interconnects, ANL and in-line fuses, and inverter cables are all included.

Choose options










Frequently Asked Questions
How much power will it produce per day?
Lithium or AGM: which should I choose?
Can I add more panels later?
Renogy · Solar Kits · 400W + 2.4kWh
Renogy 400W 12V Complete Solar Kit with 2.4kWh Batteries
Panels, batteries, inverter and wiring in one matched kit. Choose smart lithium or proven AGM storage.
This complete Renogy system combines four 100W N-type panels, a Rover 40A MPPT controller, a 2000W pure sine wave inverter and two 12V 100Ah batteries for 2.4kWh of storage. Choose Smart LiFePO4 batteries with Bluetooth and self-heating, or deep cycle AGM batteries with a 500A shunt battery monitor included. Renogy estimates about 2,000 to 2,500Wh of daily production with 5 to 6 peak sun hours, and every mount, fuse and cable you need is in the box.
Why it stands out
One Box, One Complete 12V Solar System
Generation, storage, inversion and protection, pre-matched by Renogy.
Best for: RVs, cabins, sheds and off-grid weekend setups that want a complete 12V system with AC power out of the box.
Key Features

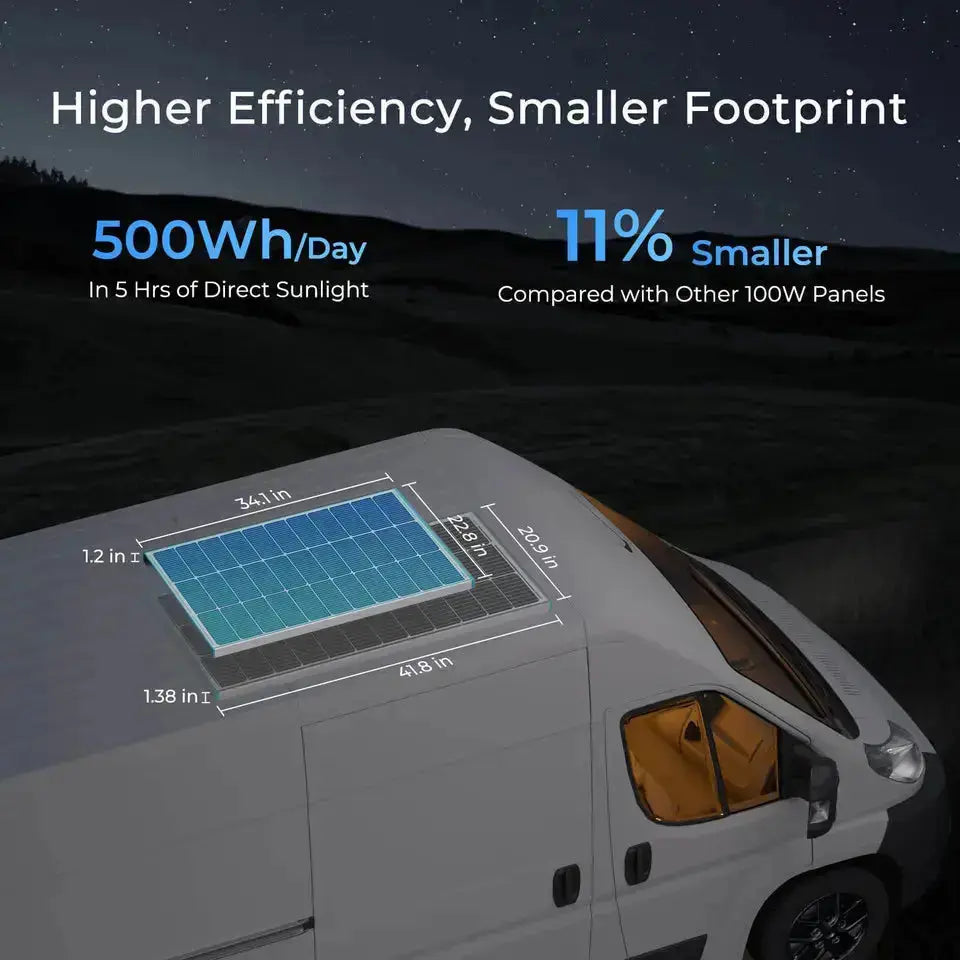

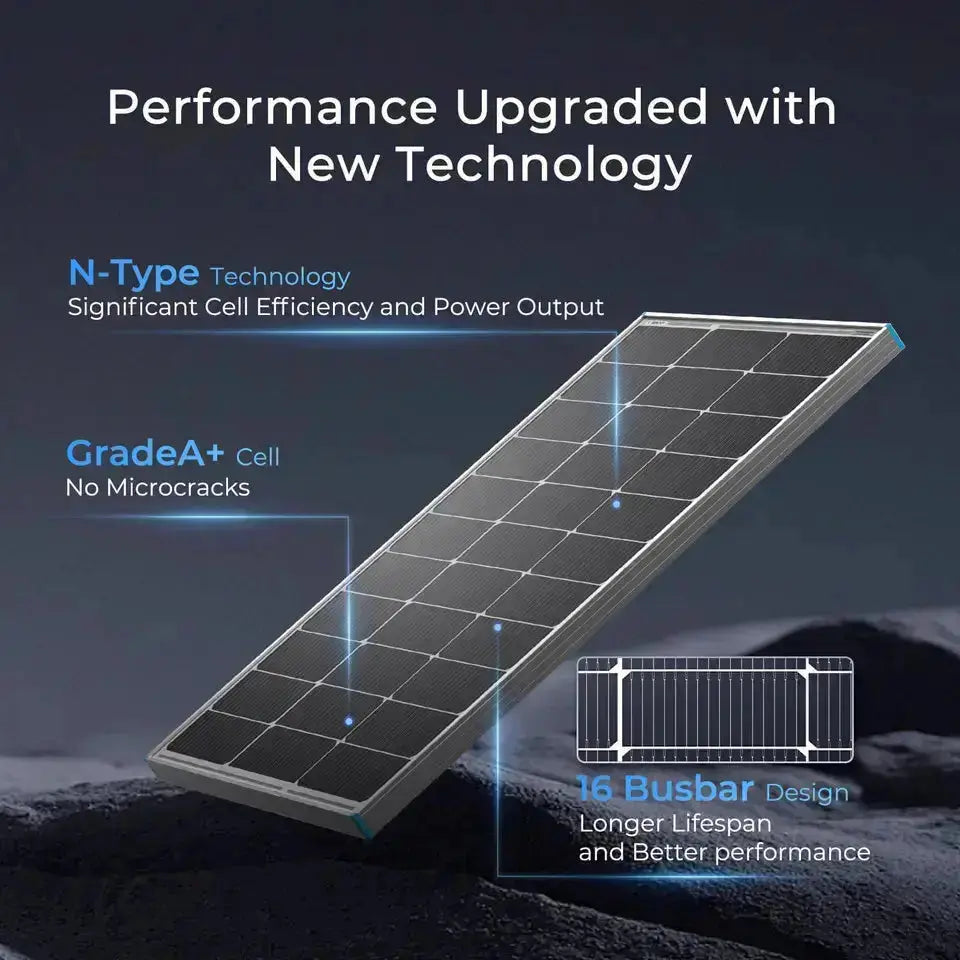

Four 100W N-Type Panels
16BB N-type panels with aluminum alloy frames and reinforced corners for durability on the road or roof.
Rover Li 40A MPPT Controller
Auto-detects 12V/24V systems, accepts up to 100VDC PV input, and is designed to dissipate heat while tracking maximum power.

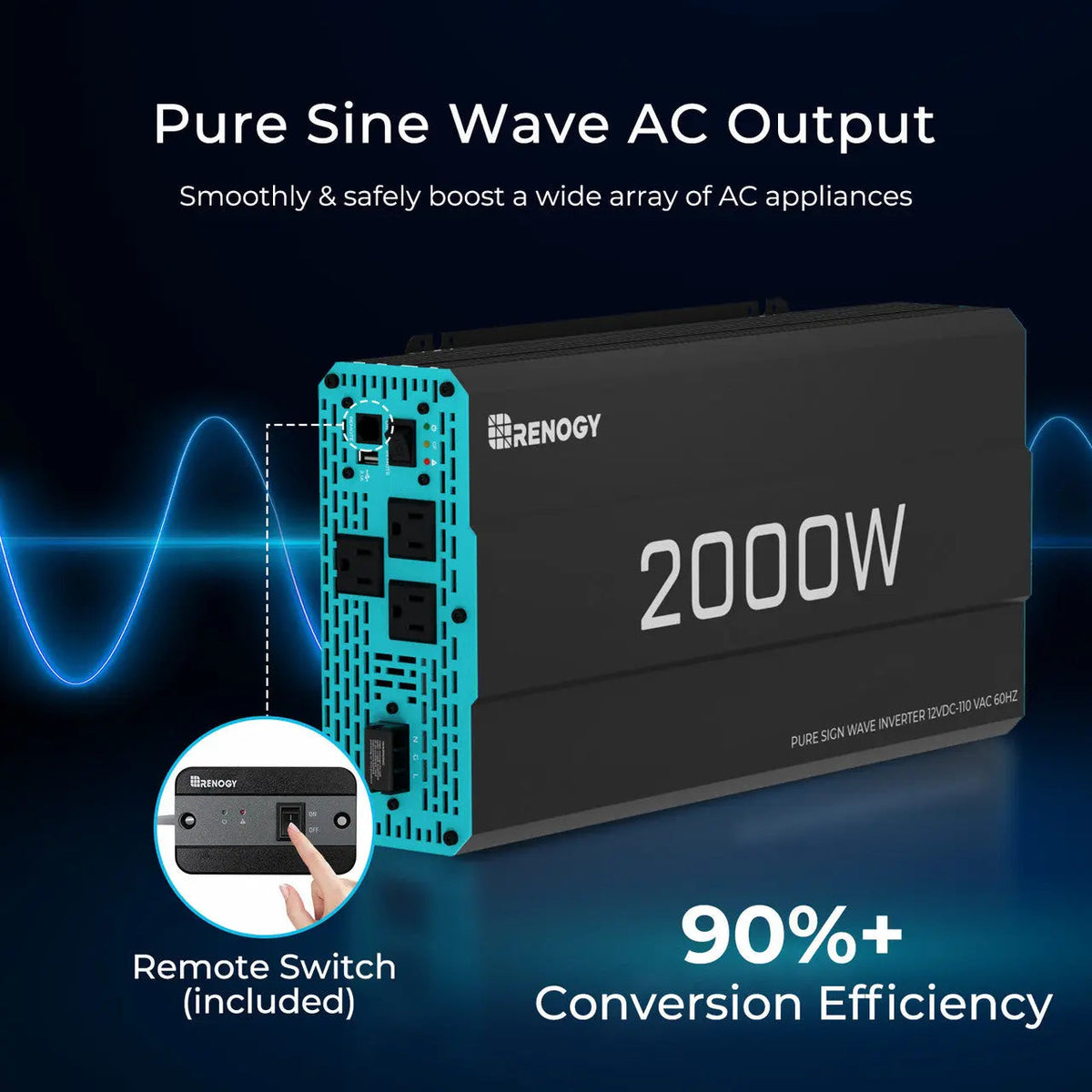

2000W Pure Sine Wave Inverter
2000W continuous and 4000W peak to run household appliances from your battery bank.
Smart Lithium Option
Two 12V 100Ah LiFePO4 batteries with Bluetooth, self-heating and a double active safety system.

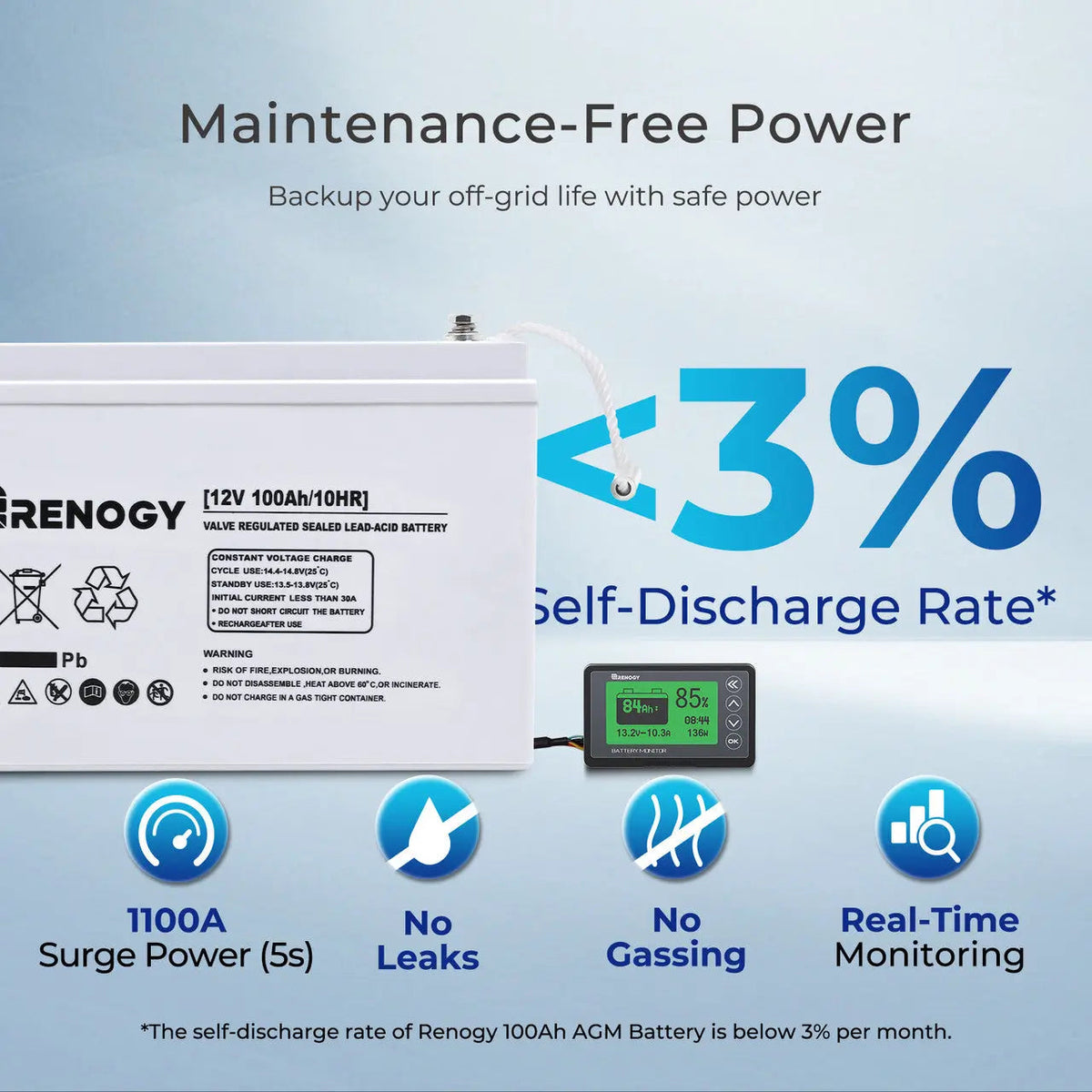

Deep Cycle AGM Option
Two 12V 100Ah AGM batteries for a conventional, wide-temperature solution, with a 500A shunt battery monitor included.
Complete Wiring and Protection
Z mounts, Y-branch connectors, adaptor kit, tray cables, interconnects, ANL and in-line fuses, and inverter cables are all included.
Built to Grow
Expand with more panels or batteries as your power needs increase.
Choose Your Battery
Technical Specifications
| Solar Panels | 4 x 100W 16BB N-type |
|---|---|
| Panel Voc / Isc | 22.79V / 5.31A |
| Panel Vmp / Imp | 19.97V / 5.01A |

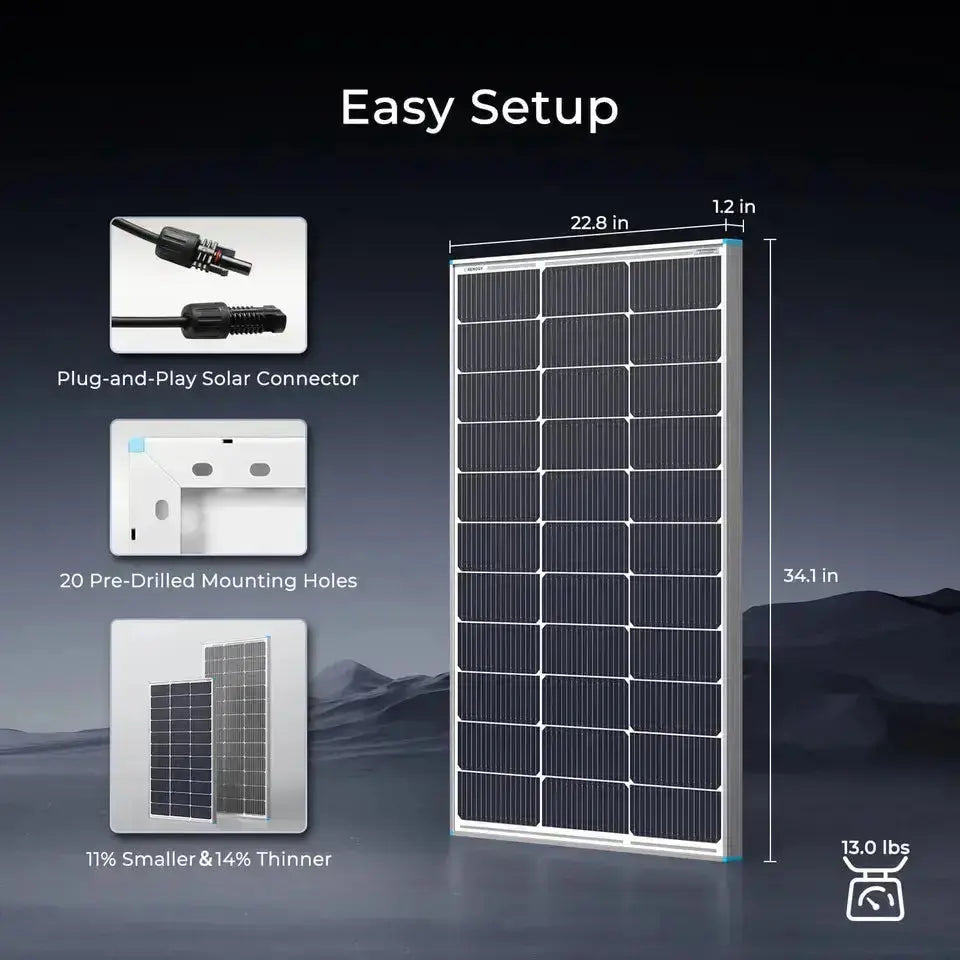

| Panel Dimensions / Weight | 34.1 x 22.8 x 1.2 in / 13.0 lb each |
| Charge Controller | Rover Li 40A MPPT, 12V/24V auto |
| Controller Max PV Voltage | 100VDC |
| Controller Max PV Power | 520W (12V) / 1040W (24V) |
| Inverter | 2000W continuous / 4000W peak pure sine wave |
| Inverter Output Voltage | 115V |
| Inverter Dimensions / Weight | 17.8 x 8.6 x 4 in / 11.7 lb |
| Battery Bank | 2 x 12V 100Ah (2.4kWh) |
| Lithium Battery | LiFePO4, 10.6 x 7.6 x 8.1 in, 26.9 lb each |
| AGM Battery | Deep cycle AGM, 13.1 x 6.9 x 8.6 in, 63.9 lb each |
| Estimated Daily Output | About 2,000-2,500Wh (5-6 peak sun hours) |
*Performance figures are manufacturer ratings under standard test conditions. Real-world output varies with sunlight, temperature, installation and load. Specifications may change as Renogy updates the model.

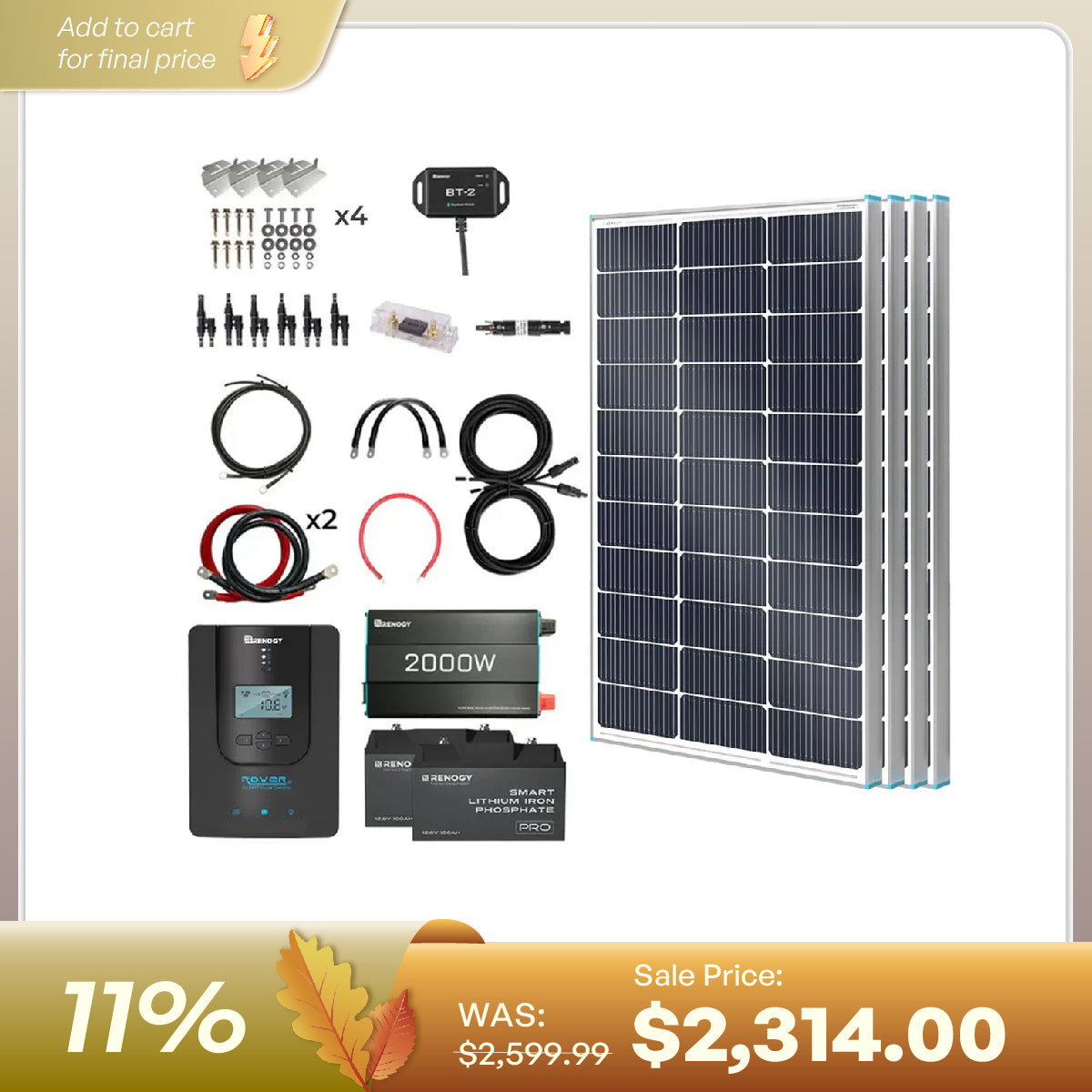

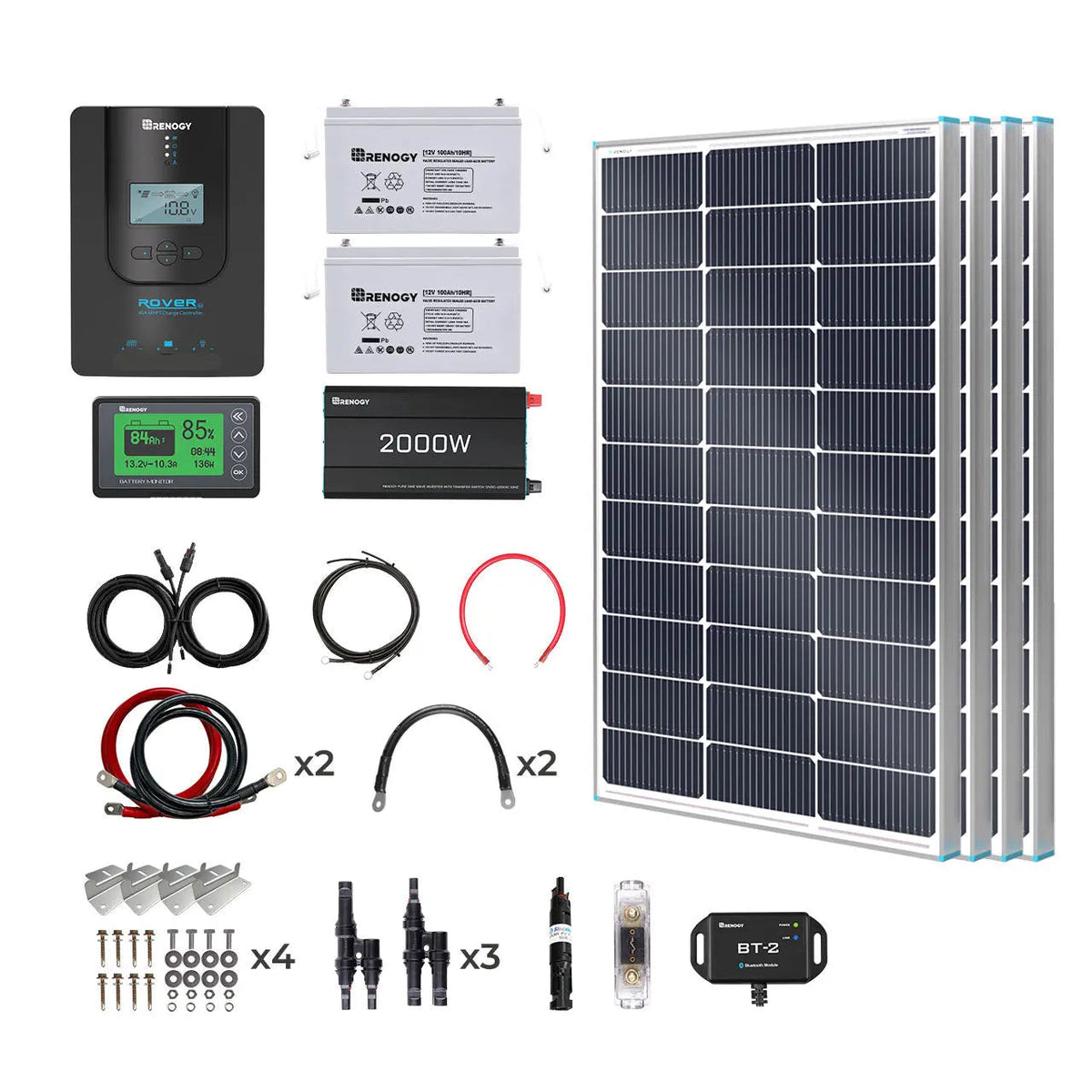

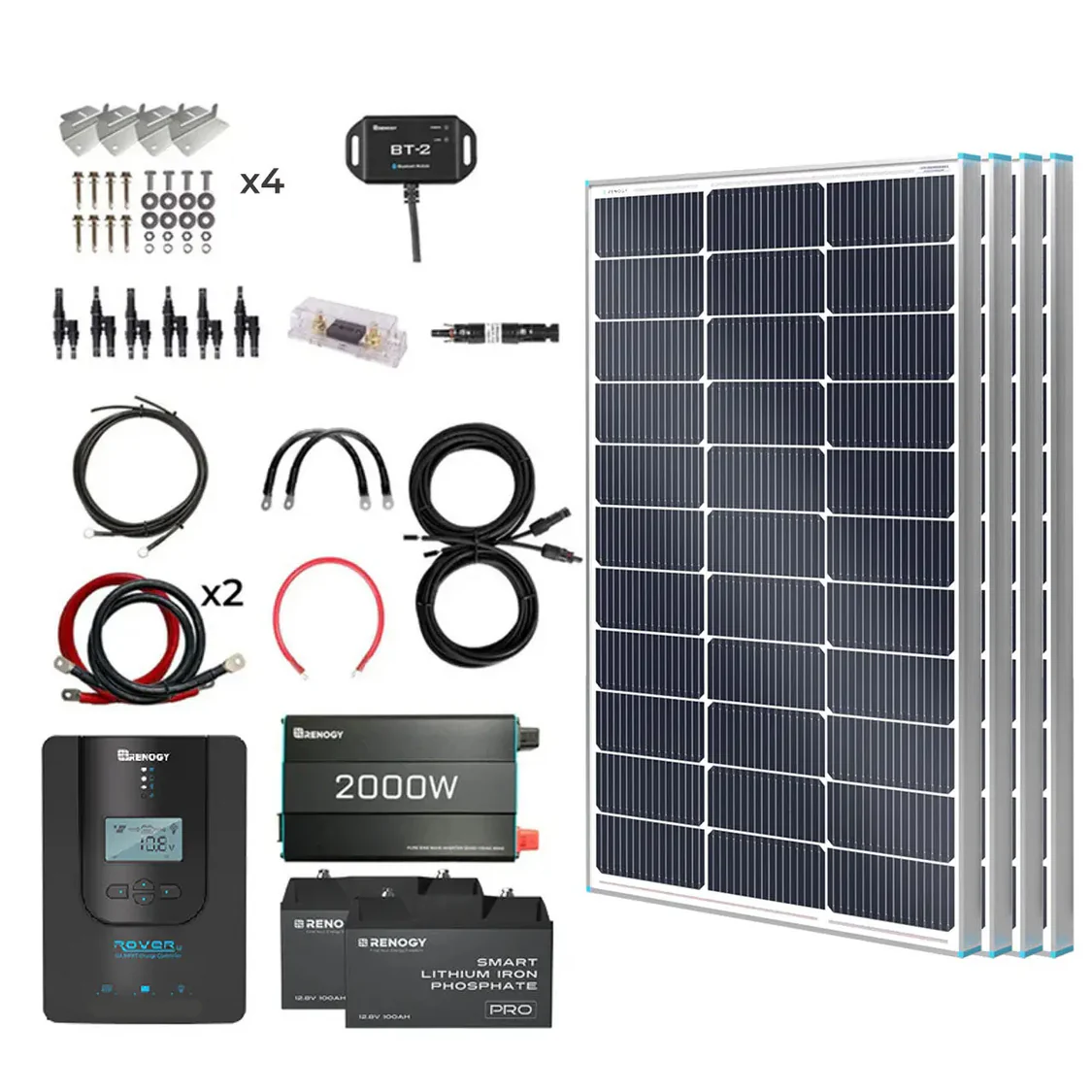

What's in the Box
- 4 x 100W 16BB N-type solar panels
- 1 x Rover Li 40A MPPT charge controller
- 2 x 12V 100Ah batteries (Smart LiFePO4 or Deep Cycle AGM)
- 1 x 2000W 12V pure sine wave inverter
- 1 x Solar panel Z mounting bracket set (4)
- 3 x Solar Y-branch connector pairs (MMF+FFM)
- 1 x 20 ft 10AWG panel-to-controller adaptor kit
- 1 x 8 ft 8AWG battery-to-controller tray cables
- 2 x 16 in 4AWG copper battery interconnects
- 1 x 1 ft 8AWG ANL fuse cable
- 1 x 40A ANL fuse set with fuse
- 1 x 30A waterproof in-line fuse holder with fuse
- 2 x Battery inverter cables
- 1 x BT-2 Bluetooth module
- 1 x 500A battery monitor with shunt (AGM option only)
Ownership & Support
- Backed by Renogy's manufacturer warranty (see specifications for model-specific terms)
- Need help sizing a system? We can help you match panels, batteries, controllers and inverters
- Professional installation by a qualified electrician is recommended for AC and high-voltage systems
- Questions before you buy? Contact Your Tech Haven at support@yourtechhaven.com or (972) 737-7434
Renogy 400W 12V Complete Solar Kit with 2.4kWh Batteries FAQs
How much power will it produce per day?
Renogy estimates about 2,000 to 2,500Wh per day with 5 to 6 peak sun hours.
Lithium or AGM: which should I choose?
Lithium is much lighter (26.9 lb vs 63.9 lb per battery) and adds Bluetooth and self-heating. AGM is the lower-cost option and includes a 500A shunt battery monitor.
Can I add more panels later?
Yes, the kit is expandable. The Rover 40A accepts up to 520W at 12V and 100VDC maximum PV input, so check those limits when adding panels.
Is everything needed for installation included?
The kit includes panels, controller, batteries, inverter, mounting brackets, connectors, cables and fuses. Mounting hardware for your specific surface may vary.
Can I monitor the system?
Yes. A BT-2 Bluetooth module is included for app monitoring.
